CINT3110 Series
Manufacturer: SL POWER / Advanced Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

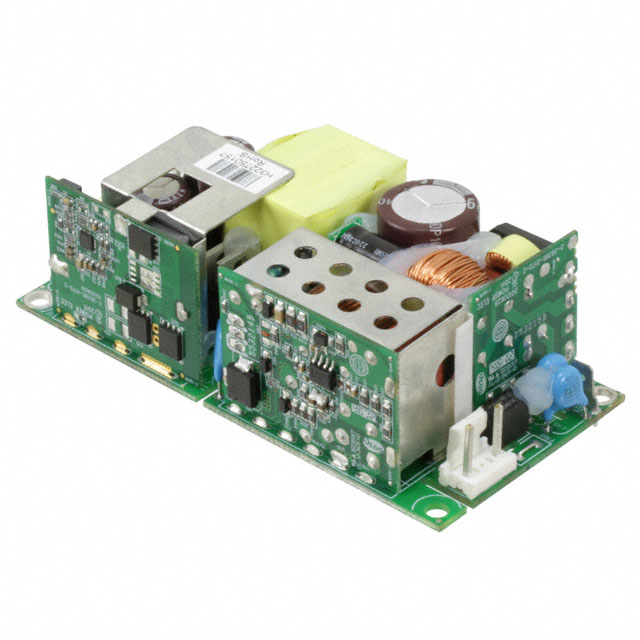

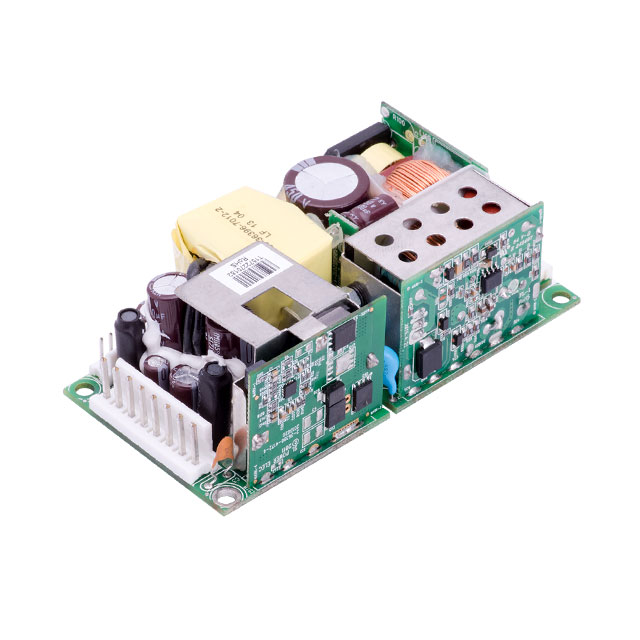

AC/DC POWER SUPPLY TRIPLE-OUT 5V/24V/-24V 8A/3A/1A 110W 15-PIN
| Part | Current - Output 1 | Voltage - Isolation | Applications | Voltage - Output 2 | Current - Output 3 | Voltage - Output 3 | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Current - Output 2 | Number of Outputs | Operating Temperature (Max) | Operating Temperature (Min) | Approval Agency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Efficiency | Voltage - Output 1 | Mounting Type | Features | Type | Power (Watts) | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 12 A | 4000 Vpk | ITE (Commercial) | 24 V | 1 A | -24 V | 4 in | 1.3 in | 2 in | 4 A | 3 | 70 °C | -10 °C | CE | 90 V | 264 V | 87 % | 5 V | Chassis Mount | Adjustable Output DC Input Capable Remote Sense Universal Input | Open Frame | 80 W 110 W | No |
 SL POWER / Advanced Energy | 14 A | 4000 Vpk | ITE (Commercial) | 15 V | 1 A | -15 V | 4 in | 1.3 in | 2 in | 4.5 A | 3 | 70 °C | -10 °C | CE | 90 V | 264 V | 87 % | 5 V | Chassis Mount | Adjustable Output DC Input Capable Remote Sense Universal Input | Open Frame | 80 W 110 W | No |
SL POWER / Advanced Energy | 14 A | 4000 Vpk | ITE (Commercial) | 12 V | 1 A | -12 V | 4 in | 1.3 in | 2 in | 6 A | 3 | 70 °C | -10 °C | CE | 90 V | 264 V | 87 % | 5 V | Chassis Mount | Adjustable Output DC Input Capable Remote Sense Universal Input | Open Frame | 80 W 110 W | No |
