R7FA2E1 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
MCU, 32BIT, 48MHZ, LQFP-32 ROHS COMPLIANT: YES
| Part | Core Size | Number of I/O | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Processor | Mounting Type | Connectivity | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | EEPROM Size | Peripherals | Program Memory Type | RAM Size | Speed | Supplier Device Package | Oscillator Type | Data Converters | Program Memory Size | Supplier Device Package [x] | Supplier Device Package [y] | Utilized IC / Part | Contents | Suggested Programming Environment | Board Type | Interconnect System | Type | Platform |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | 23 | 5.5 V | 1.6 V | ARM® Cortex®-M23 | Surface Mount | I2C SmartCard SPI UART/USART | 32-LQFP | 85 C | -40 ¯C | 4K x 8 | AES Capacitive Touch DMA LVD POR PWM Temp Sensor TRNG WDT | FLASH | 16 K | 48 MHz | 32-LQFP (7x7) | External Internal | A/D 10x12b SAR | 128 KB | |||||||||
 Renesas Electronics Corporation | 32-Bit | 20 | 5.5 V | 1.6 V | ARM® Cortex®-M23 | Surface Mount | I2C SmartCard SPI UART/USART | 25-UFBGA WLCSP | 85 C | -40 ¯C | 4K x 8 | AES DMA LVD POR PWM Temp Sensor TRNG WDT | FLASH | 16 K | 48 MHz | 25-WLCSP | Internal | A/D 8x12b SAR | 64 KB | 2.14 | 2.27 | |||||||
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | 37 | 5.5 V | 1.6 V | ARM® Cortex®-M23 | Surface Mount | I2C SmartCard SPI UART/USART | 48-WFQFN Exposed Pad | 105 °C | -40 °C | 4K x 8 | AES Capacitive Touch DMA LVD POR PWM Temp Sensor TRNG WDT | FLASH | 16 K | 48 MHz | 48-HWQFN (7x7) | External Internal | A/D 13x12b SAR | 128 KB | |||||||||
Renesas Electronics Corporation | 32-Bit | 20 | 5.5 V | 1.6 V | ARM® Cortex®-M23 | Surface Mount | I2C SmartCard SPI UART/USART | 25-UFBGA WLCSP | 85 C | -40 ¯C | 4K x 8 | AES DMA LVD POR PWM Temp Sensor TRNG WDT | FLASH | 16 K | 48 MHz | 25-WLCSP | Internal | A/D 8x12b SAR | 128 KB | 2.14 | 2.27 | |||||||

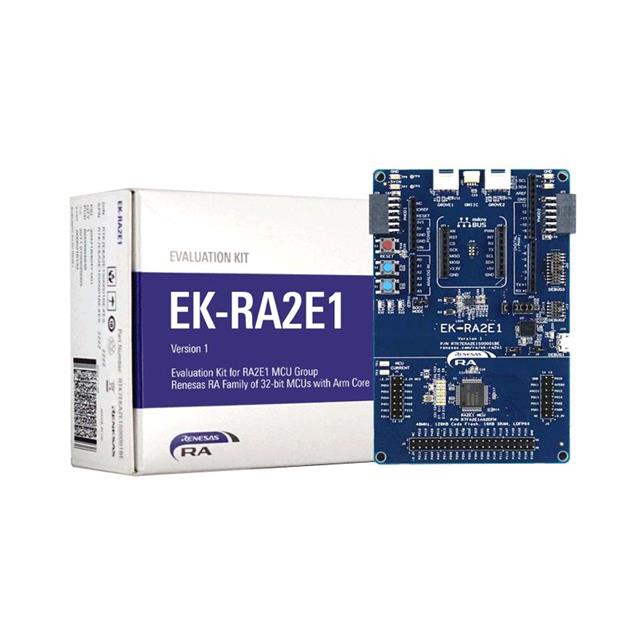

 Renesas Electronics Corporation | ARM® Cortex®-M23 | Fixed | R7FA2E1 RA2E1 | Board Board(s) Cable | e2 studio | Evaluation Platform | Arduino R3 Shield Grove mikroBUS Click Pmod Qwiic | MCU 32-Bit | EK-RA2E1 | |||||||||||||||||||
 Renesas Electronics Corporation | 32-Bit 32-Bit Single-Core | 53 | 5.5 V | 1.6 V | ARM® Cortex®-M23 | Surface Mount | I2C SmartCard SPI UART/USART | 64-LQFP | 85 C | -40 ¯C | 4K x 8 | AES Capacitive Touch DMA LVD POR PWM Temp Sensor TRNG WDT | FLASH | 16 K | 48 MHz | 64-LFQFP (10x10) | External Internal | A/D 13x12b SAR | 128 KB |
