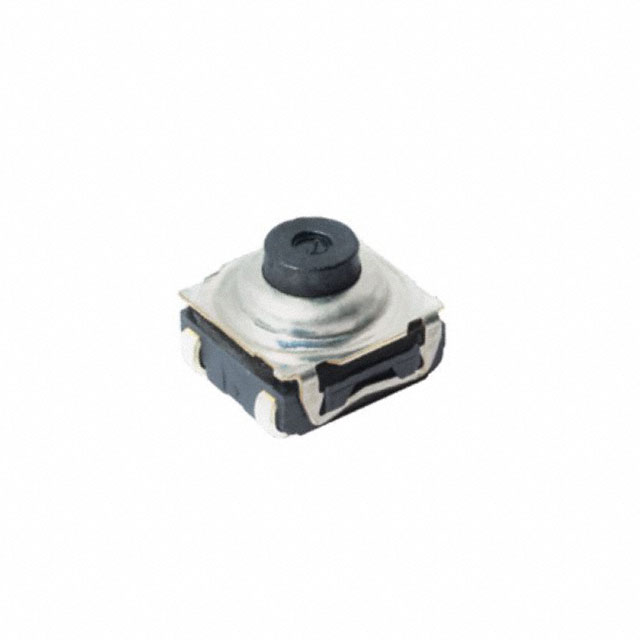

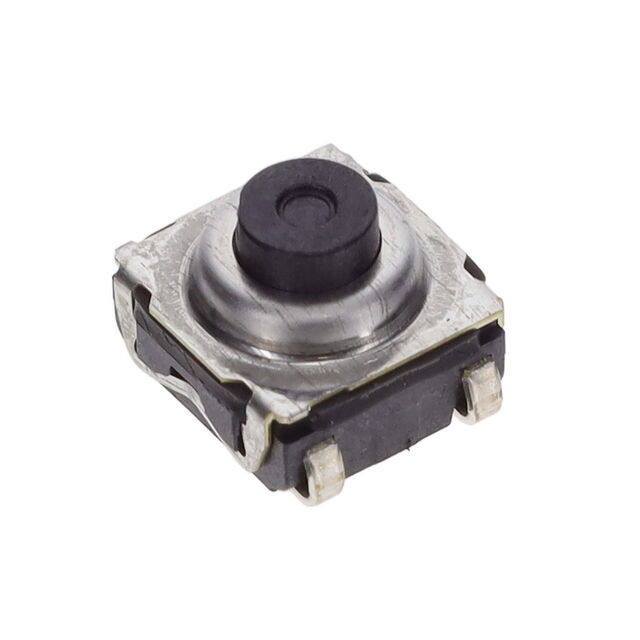

KSC XA Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACT SPST-NO 0.042A 24V
| Part | Illumination | Circuit | Outline [x] | Outline [y] | Ingress Protection | Operating Force | Switch Travel | Termination Style | Mechanical Life | Mounting Type | Actuator Height off PCB, Vertical [z] | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Contact Rating @ Voltage | Actuator Orientation | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Non-Illuminated | SPST-NO | 6.3 mm | 6.2 mm | IP67 - Dust Tight Waterproof | 979 gf | 0.7 mm | J Lead | 150000 Cycles | Surface Mount | 4.9 mm | -40 °C | 203 °F | Standard | 0.042 A 24 VDC | Top Actuated | Off-Mom |
 Littelfuse/Commercial Vehicle Products | Non-Illuminated | SPST-NO | 6.3 mm | 6.2 mm | IP67 - Dust Tight Waterproof | 357 gf | 0.7 mm | J Lead | 1000000 Cycles | Surface Mount | 4.9 mm | -40 °C | 203 °F | Standard | 0.042 A 24 VDC | Top Actuated | Off-Mom |
Littelfuse/Commercial Vehicle Products | Non-Illuminated | SPST-NO | 6.3 mm | 6.2 mm | IP67 - Dust Tight Waterproof | 693 gf | 0.7 mm | J Lead | 500000 Cycles | Surface Mount | 4.9 mm | -40 °C | 203 °F | Standard | 0.042 A 24 VDC | Top Actuated | Off-Mom |
