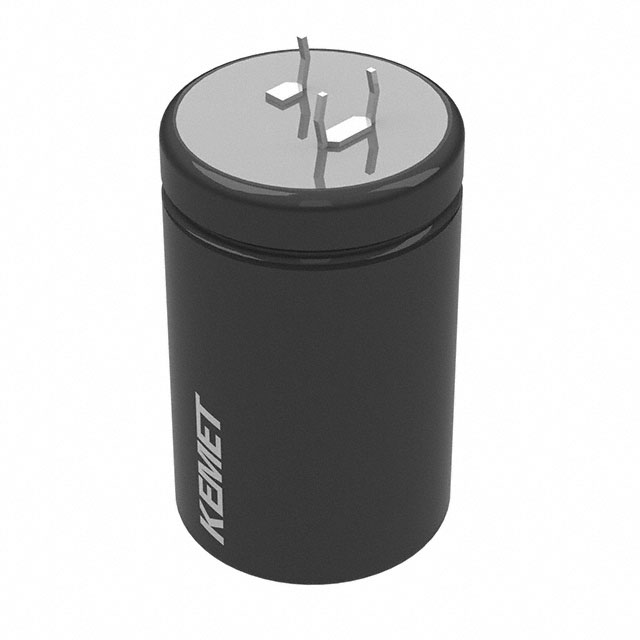

ALC70F Series

Manufacturer: KEMET

Catalog

Catalog

CAP ALUM 130UF 20% 500V SNAP TH

...

Part	Impedance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Polarization	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Package / Case	Capacitance	Voltage - Rated	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Tolerance	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC70F131CB500	1.09 Ohms	13000 Hrs	1.541 Ohm	Polar	30 mm	1.181 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	130 µF	500 V	General Purpose	Through Hole	1.26 in	32 mm	2.41 A	20 %	1.1 A
KEMET ALC70F511DD400	145 mOhms	15000 Hrs	272 mOhm	Polar		1.378 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	510 µF	400 V	General Purpose	Through Hole	1.654 in	42 mm	5.74 A	20 %	2.46 A	35 mm
KEMET ALC70F181DD600	491 mOhms	15000 Hrs	711 mOhm	Polar		1.378 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	180 µF	600 V	General Purpose	Through Hole	1.654 in	42 mm	3.91 A	20 %	1.81 A	35 mm
KEMET ALC70F273DF040	25 mOhms	15000 Hrs	30 mOhm	Polar		1.378 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	27 mF	40 V	General Purpose	Through Hole			10.66 A	20 %	8.8 A	35 mm	2.047 in	52 mm
KEMET ALC70F202CB100	100 mOhms	13000 Hrs	128 mOhm	Polar	30 mm	1.181 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	2 mF	100 V	General Purpose	Through Hole	1.26 in	32 mm	5.2 A	20 %	3.63 A
KEMET ALC70F431BD250	249 mOhms	10000 Hrs	428 mOhm	Polar		0.984 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	430 µF	250 V	General Purpose	Through Hole	1.654 in	42 mm	3.44 A	20 %	1.65 A	25 mm
KEMET ALC70F221BD400		10000 Hrs		Polar		0.984 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	220 µF	400 V	General Purpose	Through Hole	1.654 in	42 mm	3.2 A	20 %	1.31 A	25 mm
KEMET ALC70F362EB100	73 mOhms	18000 Hrs	89 mOhm	Polar		1.575 in	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	3600 µF	100 V	General Purpose	Through Hole	1.26 in	32 mm	5.73 A	20 %	4.68 A	40 mm
KEMET ALC70F911CF250	116 mOhms	13000 Hrs	200 mOhm	Polar	30 mm	1.181 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	910 µF	250 V	General Purpose	Through Hole			6.21 A	20 %	2.88 A		2.047 in	52 mm
KEMET ALC70F121BD550	3.118 Ohms	10000 Hrs	3.586 Ohm	Polar		0.984 "	85 °C	-40 C	0.394 in	10 mm	Radial Can - Snap-In - 3 Lead	120 µF	550 V	General Purpose	Through Hole	1.654 in	42 mm	1.44 A	20 %	920 mA	25 mm
