S4B-ZR Series

Catalog

CONN HEADER R/A 4POS 1.5MM

Part	Contact Type	Mounting Type	Connector Type	Number of Rows	Contact Shape	Contact Finish - Post	Contact Material	Insulation Material	Insulation Color	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Shrouding	Number of Positions Loaded	Insulation Height	Insulation Height	Voltage Rating	Style	Number of Positions	Features	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating
JST Sales America Inc. S4B-ZR-3.4	Male Pin	Right Angle Through Hole	Header	1	Circular	Tin	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Natural	Solder	UL94 V-0	85 °C	-25 °C	Detent Lock	0.134 "	3.4 mm	Shrouded - 4 Wall	All	3.7 mm	0.146 in	50 V	Board to Cable/Wire	4

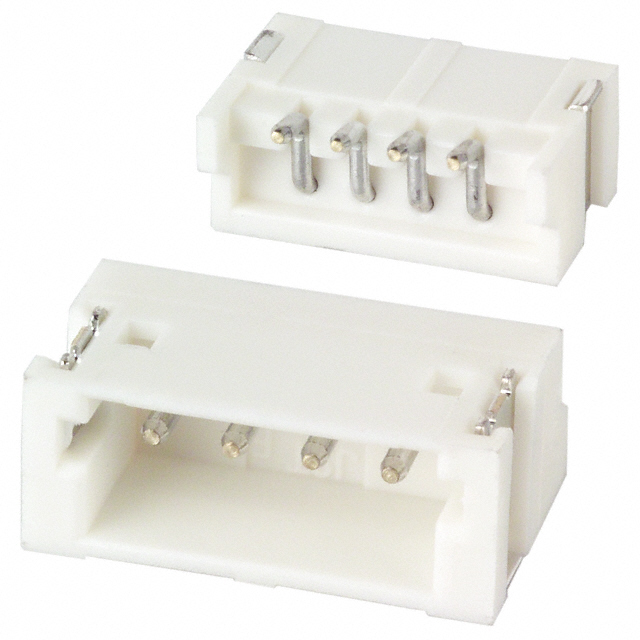

JST Sales America Inc. S4B-ZR-SM4A-TF	Male Pin	Right Angle Surface Mount	Header	1	Circular	Tin	Brass	Nylon 6T Polyamide (PA6T)	Natural	Solder	UL94 V-0	85 °C	-25 °C	Detent Lock			Shrouded - 4 Wall	All	3.7 mm	0.146 in	50 V	Board to Cable/Wire	4	Solder Retention

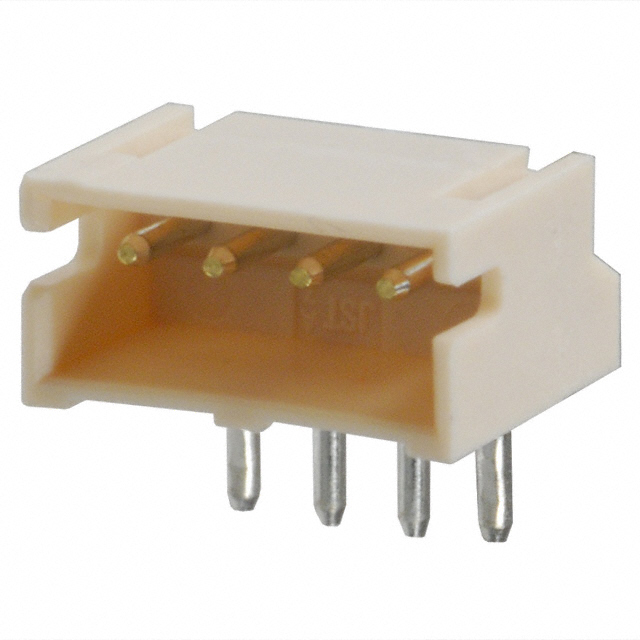

JST Sales America Inc. S4B-ZR	Male Pin	Right Angle Through Hole	Header	1	Circular	Tin	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Natural	Solder	UL94 V-0	85 °C	-25 °C	Detent Lock	0.106 in		Shrouded - 4 Wall	All	3.7 mm	0.146 in	50 V	Board to Cable/Wire	4		2.69 mm	2.4 mm	0.094 in
JST Sales America Inc. S4B-ZR-SM2-TF	Male Pin	Right Angle Surface Mount	Header	1	Circular	Tin	Brass	Glass Filled Nylon 4/6 Polyamide (PA46)	Natural	Solder	UL94 V-0	85 °C	-25 °C	Detent Lock			Shrouded - 4 Wall	All	3.7 mm	0.146 in	50 V	Board to Cable/Wire	4	Board Guide		2.4 mm	0.094 in
