TLR2H Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES 7M OHM 1% 2W 2010

Part	Ratings	Resistance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Temperature Coefficient	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Power (Watts)	Composition	Number of Terminations [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

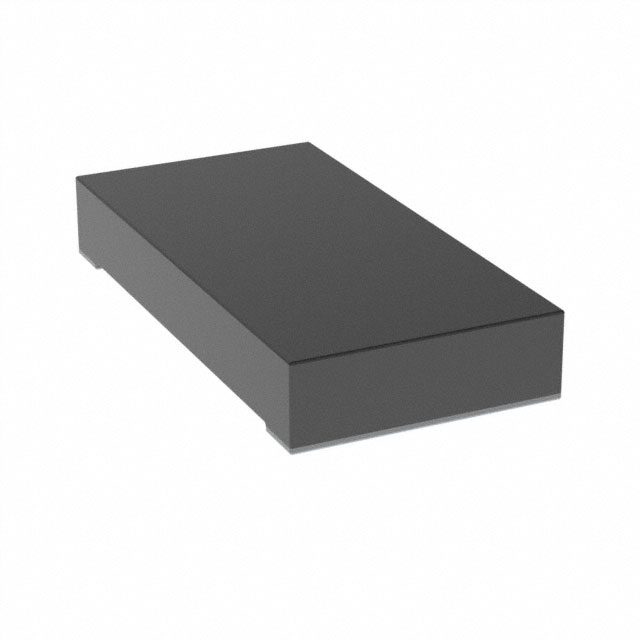

KOA Speer Electronics, Inc. TLR2HWDTE7L00F75	AEC-Q200	7 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	75 ppm/°C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "

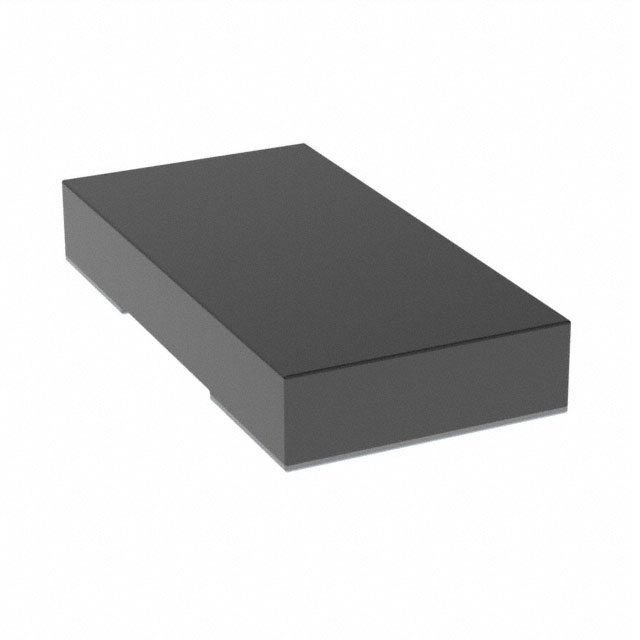

KOA Speer Electronics, Inc. TLR2HWDTE2L50F75	AEC-Q200	2.5 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	75 ppm/°C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HDTE6L00F50	AEC-Q200	6 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	50 ppm/░C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	1 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HDTE6L00F75	AEC-Q200	6 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	75 ppm/°C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	1 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HWDTE6L00F75	AEC-Q200	6 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	75 ppm/°C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HWDTE4L00F50	AEC-Q200	4 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	50 ppm/░C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HWDTE5L00F75	AEC-Q200	5 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	75 ppm/°C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HDTE7L00F50	AEC-Q200	7 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	50 ppm/░C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	1 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HWDTE9L00F50	AEC-Q200	9 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	50 ppm/░C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "
KOA Speer Electronics, Inc. TLR2HWDTE4L00F75	AEC-Q200	4 mOhms	Automotive AEC-Q200 Current Sense	-65 ░C	170 °C	1 %	75 ppm/°C	2010 (5025 Metric)	5 mm	0.098 in	0.197 in	2.5 mm	2010	2 W	Metal Element	2	0.8 mm	0.032 "
