310-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.156

Part	Termination Rows	Material - Insulation	Gender	Contact Type	Pitch	Pitch	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Color	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Card Type	Mounting Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Number of Rows	Number of Rows [custom]
EDAC Inc. 310-030-547-104	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1

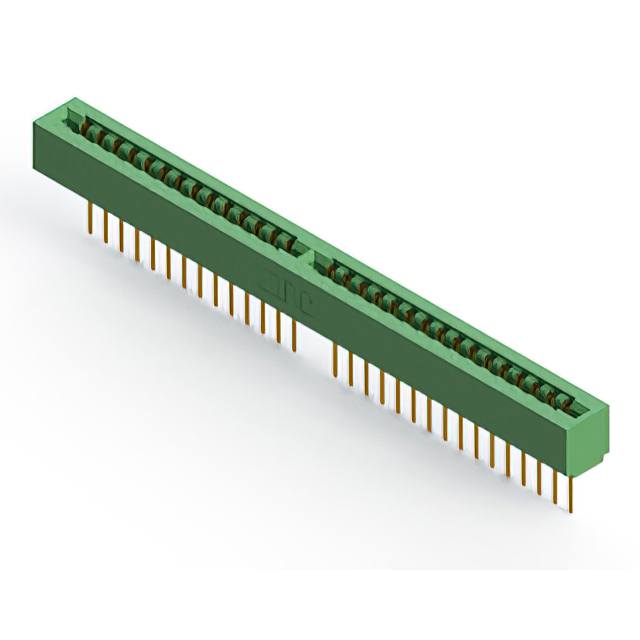

EDAC Inc. 310-030-547-101	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold				30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1

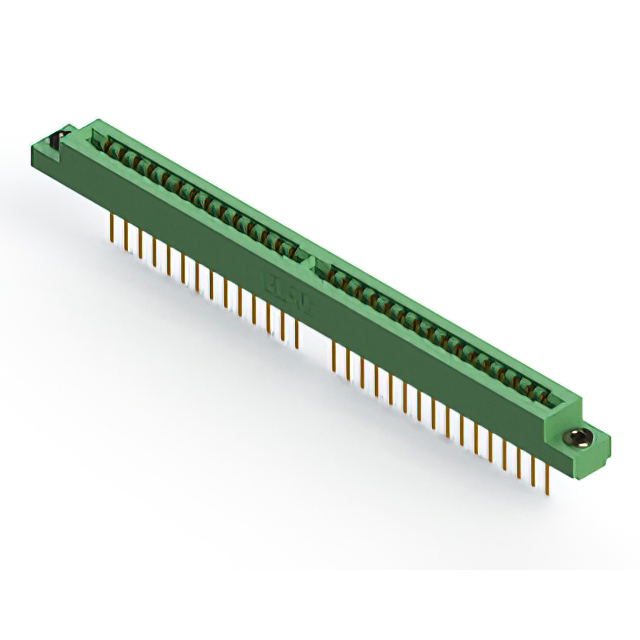

EDAC Inc. 310-030-547-103	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm	30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1

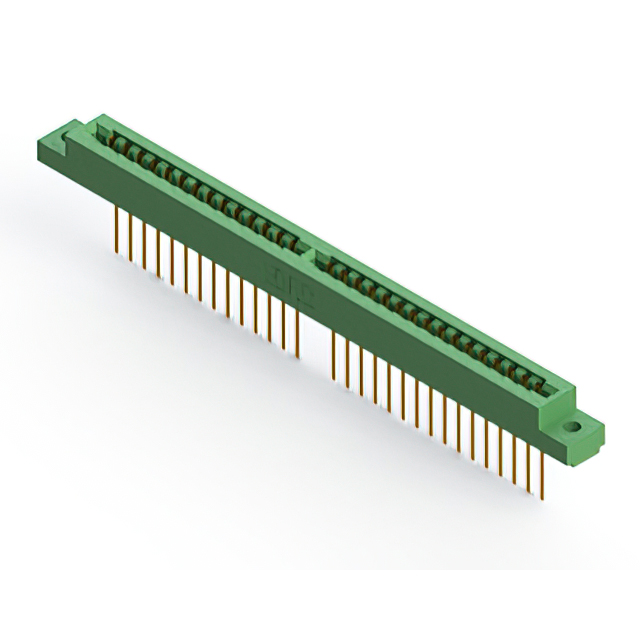

EDAC Inc. 310-030-545-104	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1

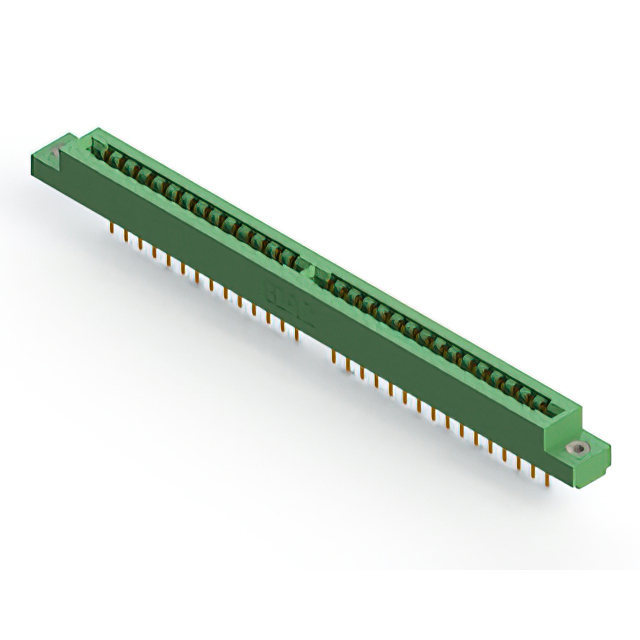

EDAC Inc. 310-030-527-107	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Flush Mount M3 Threaded Insert Top Opening			30	Non Specified - Dual Edge	Through Hole	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1
EDAC Inc. 310-030-545-103	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm	30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1

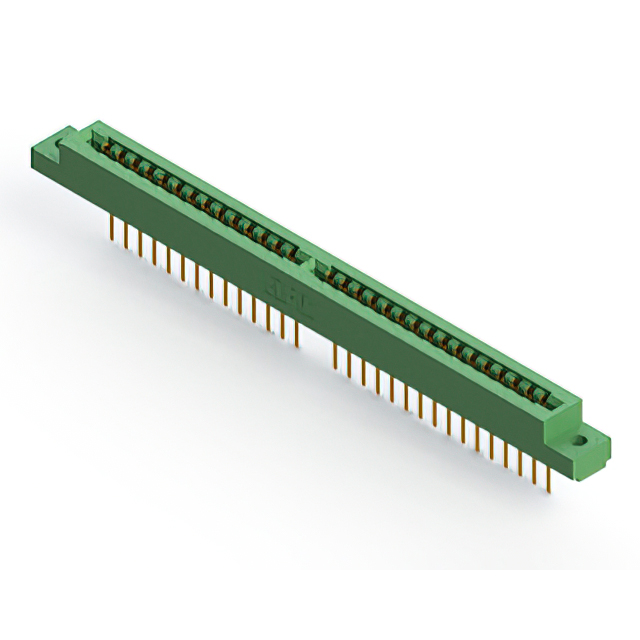

EDAC Inc. 310-030-541-104	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Dual	-40 C	105 ░C	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	60	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30		2
EDAC Inc. 310-030-541-103	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Dual	-40 C	105 ░C	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm	60	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30		2
EDAC Inc. 310-030-545-102	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1
EDAC Inc. 310-030-547-107	1	Polyester Thermoplastic	Female	Semi Bellows	3.96 mm	0.156 in	Copper Alloy	0.25 Ám	10 Áin	Green	Single	-40 C	105 ░C	Gold	Flush Mount M3 Threaded Insert Top Opening			30	Non Specified - Dual Edge	Through Hole	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30	1
