ECE-V0 Series

Manufacturer: Panasonic Electronic Components

Catalog

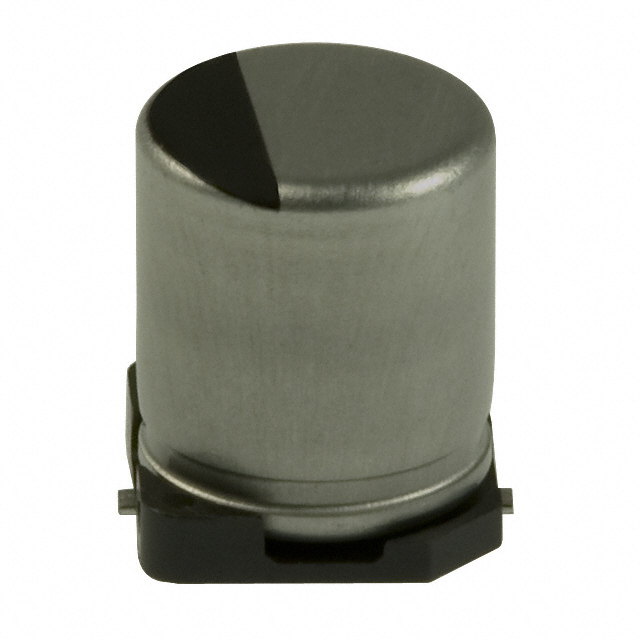

CAP ALUM 100UF 20% 6.3V SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Ripple Current @ Low Frequency	Capacitance	Polarization	Tolerance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lifetime @ Temp.	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)
Panasonic Electronic Components ECE-V0JA101SP	5.4 mm	0.213 in	General Purpose	71 mA	100 µF	Polar	20 %	Surface Mount	0.248 "	6.3 mm	Radial Can - SMD	2000 Hrs	0.26 in	6.6 mm	6.6 mm	0.26 in	6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA152P	10.2 mm	0.402 in	General Purpose	750 mA	1.5 mF	Polar	20 %	Surface Mount	0.394 in	10 mm	Radial Can - SMD	2000 Hrs	0.406 in	10.3 mm	10.3 mm	0.406 "	6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0GA470SR	5.4 mm	0.213 in	General Purpose	34 mA	47 µF	Polar	20 %	Surface Mount	0.157 in	4 mm	Radial Can - SMD	1000 Hrs	0.169 "	4.3 mm	4.3 mm	0.169 in	4 V	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA221WP	5.4 mm	0.213 in	General Purpose	74 mA	220 µF	Polar	20 %	Surface Mount	0.248 "	6.3 mm	Radial Can - SMD	1000 Hrs	0.26 in	6.6 mm	6.6 mm	0.26 in	6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA470NP	5.4 mm	0.213 in	General Purpose	46 mA	47 µF	Bi-Polar	20 %	Surface Mount	0.248 "	6.3 mm	Radial Can - SMD	2000 Hrs	0.26 in	6.6 mm	6.6 mm	0.26 in	6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA471P	10.2 mm	0.402 in	General Purpose	380 mA	470 µF	Polar	20 %	Surface Mount	0.315 in	8 mm	Radial Can - SMD	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 in	6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0GS220SR	5.4 mm	0.213 in	General Purpose	19 mA	22 µF	Polar	20 %	Surface Mount	0.118 in	3 mm	Radial Can - SMD	1000 Hrs		0.13 in 3.3 mm	0.13 in 3.3 mm		4 V	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA102UP	10.2 mm	0.402 in	General Purpose	500 mA	1000 µF	Polar	20 %	Surface Mount	0.315 in	8 mm	Radial Can - SMD	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 in	6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA470SR	5.4 mm	0.213 in	General Purpose	46 mA	47 µF	Polar	20 %	Surface Mount	0.197 in	5 mm	Radial Can - SMD	2000 Hrs		0.209 in 5.3 mm	0.209 in 5.3 mm		6.3 VDC	85 °C	-40 C
Panasonic Electronic Components ECE-V0JA331XP		0.303 in	General Purpose		330 µF	Polar	20 %	Surface Mount	0.248 "	6.3 mm	Radial Can - SMD	2000 Hrs	0.26 in	6.6 mm	6.6 mm	0.26 in	6.3 VDC	85 °C	-40 C	7.7 mm
