SSI-LXH1090 Series

Catalog

LED 10MM SUPER RED PANEL MOUNT

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Lens Color	Viewing Angle	Lens Size [diameter]	Type	Panel Cutout Shape	Lamp Color	Lens Style	Voltage	Current	Millicandela Rating	Wavelength - Peak	Lens Size	Lens Size	Panel Cutout Dimensions [x]	Termination Style	Millicandela Rating

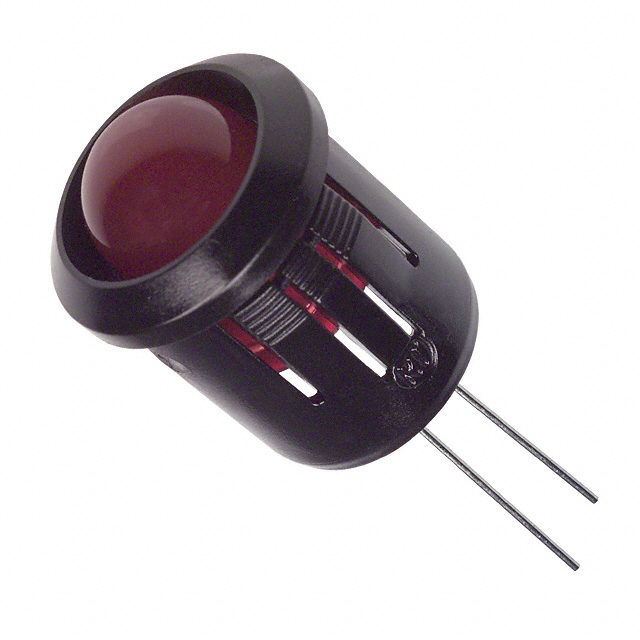

Lumex Opto/Components Inc. SSI-LXH1090SRD	0.55 in	13.97 mm	Diffused	Red	60 °	10 mm Dia	LED	Round	Red	Round with Domed Top	1.7 V	30 mA	550 mcd	660 nm
Lumex Opto/Components Inc. SSI-LXH1090SRD-150	0.55 in	13.97 mm	Diffused	Red	60 °	10 mm Dia	LED	Round	Red	Round with Domed Top	1.7 V	30 mA	550 mcd	660 nm
Lumex Opto/Components Inc. SSI-LXH1090YD	0.55 in	13.97 mm	Diffused	Yellow	60 °	10 mm Dia	LED	Round	Yellow	Round with Domed Top	2.1 V	30 mA	30 mcd	585 nm
Lumex Opto/Components Inc. SSI-LXH1090ID	0.55 in	13.97 mm	Diffused	Red	60 °	10 mm Dia	LED	Round	Red	Round with Domed Top	2 V	30 mA	40 mcd	635 nm

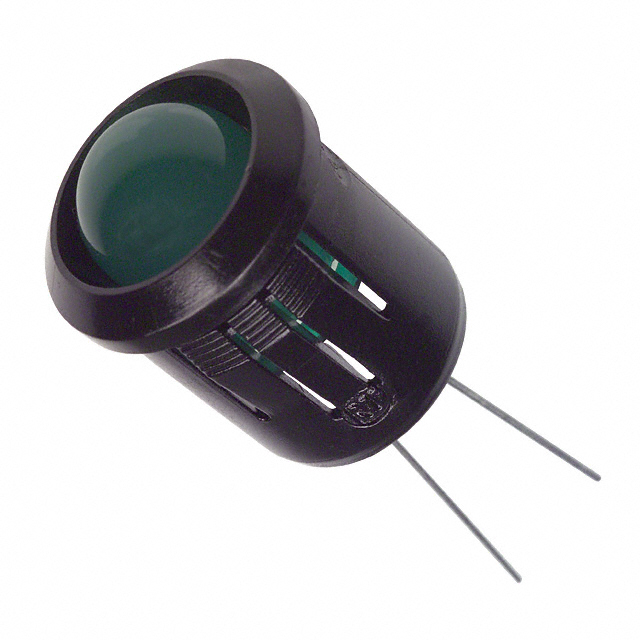

Lumex Opto/Components Inc. SSI-LXH1090GD	0.55 in	13.97 mm	Diffused	Green	60 °	10 mm Dia	LED	Round	Green	Round with Domed Top	2.2 V	25 mA	30 mcd	565 nm
Lumex Opto/Components Inc. SSI-LXH1090SID-150		14 mm	Diffused	Red	60 °		LED	Round	Red	Round with Domed Top	2 V	20 mA	550 mcd	636 nm	10 mm	T-3 1/8	0.55 in
Lumex Opto/Components Inc. SSI-LXH1090SISUGW3		14 mm	Diffused	White	60 °		LED	Round	Green Red	Round with Domed Top	2 V 2.2 V	20 mA 20 mA		574 nm 636 nm	10 mm	T-3 1/8	0.55 in	PC Pin	200mcd Green 500mcd Red
