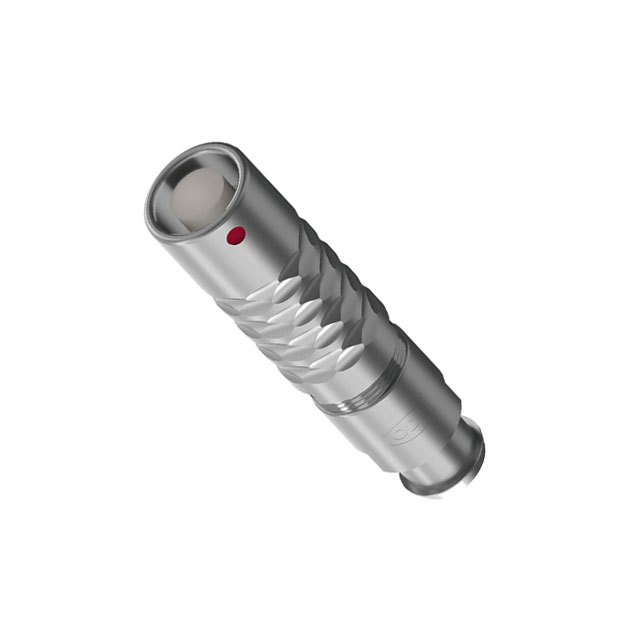

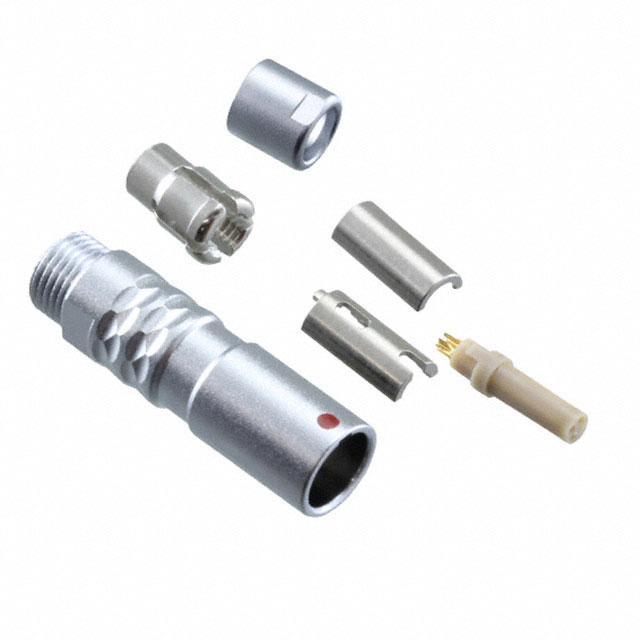

K2CL0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Primary Material | Ingress Protection | Orientation | Shell Material | Mounting Type | Connector Type | Shell Size - Insert | Current Rating (Amps) | Color | Insert Material | Features | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Contact Material | Number of Positions | Shell Finish | Fastening Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.5 mm | 3 mm | 0.138 in | 0.118 in | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell | Shielded | 120 °C | -40 C | Gold | Brass | 2 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | |
2 mm | 1.5 mm | 0.079 " | 0.059 " | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell | Shielded | 120 °C | -40 C | Gold | Brass | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||
3.5 mm | 3 mm | 0.138 in | 0.118 in | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell | Shielded | 120 °C | -40 C | Gold | Brass | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||
0.098 in 2.5 mm | 0.079 in 2 mm | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell Strain Relief | 120 °C | -40 C | Gold | Brass | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | |||||
3.5 mm | 3 mm | 0.138 in | 0.118 in | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell | Shielded | 120 °C | -40 C | Gold | Brass | 4 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | |
1.5 mm | 1 mm | 0.059 in | 0.039 in | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell | Shielded | 120 °C | -40 C | Gold | Brass | 2 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | |
0.098 in 2.5 mm | 0.079 in 2 mm | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell Strain Relief | 120 °C | -40 C | Gold | Brass | 2 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||||
0.098 in 2.5 mm | 0.079 in 2 mm | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell Strain Relief | 120 °C | -40 C | Gold | Brass | 4 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||||
3 mm | 2.5 mm | 0.118 " | 0.098 in | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell Strain Relief | 120 °C | -40 C | Gold | Brass | 2 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | ||
3 mm | 2.5 mm | 0.118 " | 0.098 in | Brass Chrome over Nickel | Metal | IP50 - Dust Protected | 0 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | 00 | 4 A | Silver | Polyetheretherketone (PEEK) | Backshell Strain Relief | 120 °C | -40 C | Gold | Brass | 4 | Chrome over Nickel | Push-Pull | Industrial Medical Military Testing Equipment & Measurement |
