RJMG241 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

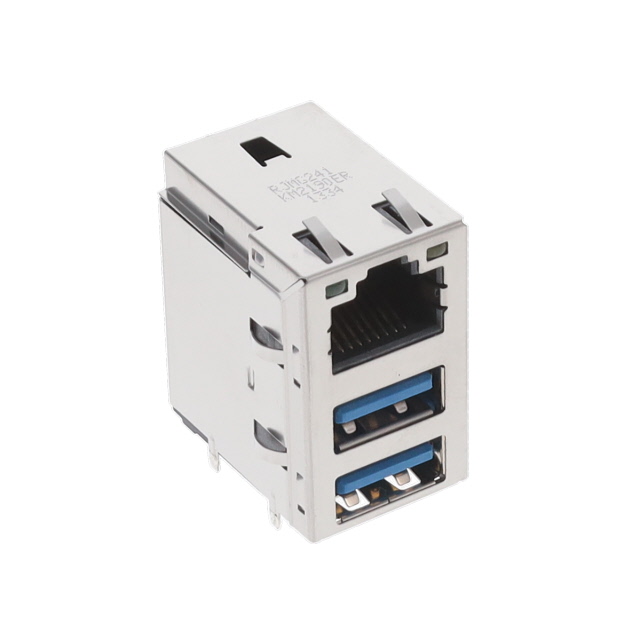

RJMAG 1000 BASE-T STACK DUAL USB
| Part | Shield Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Ports | Termination | LED Color | Number of Cores per Jack | Tab Direction | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Shielding | Mounting Type | Orientation | Features | Applications | Number of Rows | Contact Finish | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Stainless Steel | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Phosphor Bronze | 1 | Solder | Green - Yellow | 8 | Up | 70 °C | 0 °C | RJ45 with USB A Dual | EMI Finger Shielded | Through Hole | 90 ° | Board Guide | 10/100/1000 Base-T AutoMDIX | 1 | Gold | 31 mm | 1.22 in |
