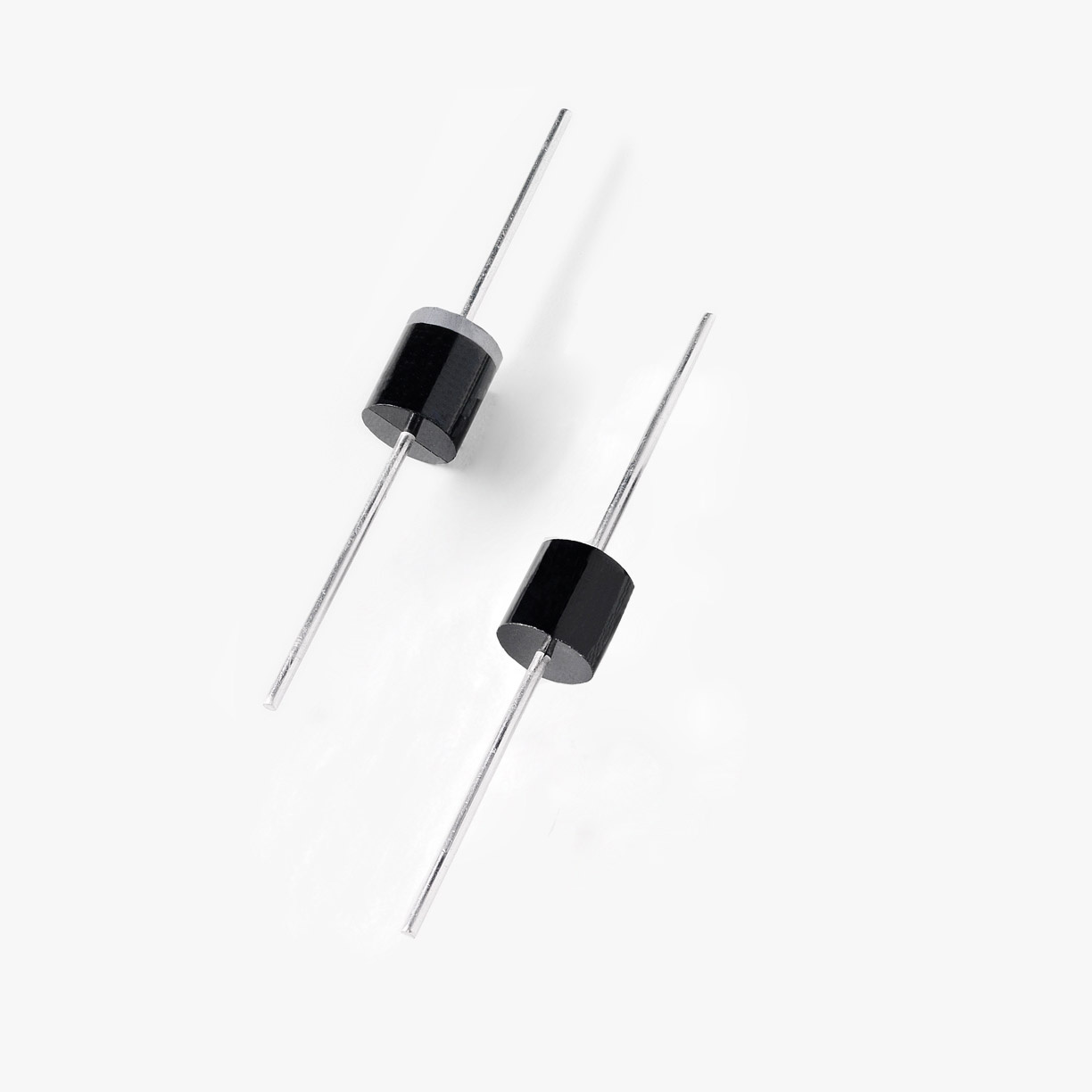

15KPA100CA-HRA Series

TVS 15KW 33V 5% UNI P600 BULK RoHs

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

TVS 15KW 33V 5% UNI P600 BULK RoHs

...

Part	Bidirectional Channels [custom]	Type	Current - Peak Pulse (10/1000µs)	Package / Case	Supplier Device Package	Applications	Voltage - Breakdown (Min) [Min]	Mounting Type	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Min]	Operating Temperature [Max]
Littelfuse/Commercial Vehicle Products 15KPA75CA-HRA	1	Zener	123.8 A	P600 Axial	P600	General Purpose	83.8 V	Through Hole	75 V
Littelfuse/Commercial Vehicle Products 15KPA260A-HR		Zener		P600 Axial	P600	General Purpose	290.4 V	Through Hole	260 V	1	416.7 V
Littelfuse/Commercial Vehicle Products 15KPA45A-HRA		Zener	207.4 A	P600 Axial	P600	General Purpose	50.3 V	Through Hole	45 V	1	72.8 V
Littelfuse/Commercial Vehicle Products 15KPA120-B		Zener	78.5 A	P600 Axial	P600	General Purpose	126.36 V	Through Hole	120 V	1		201.92 V	-55 °C	175 ░C
Littelfuse/Commercial Vehicle Products 15KPA54CA	1	Zener	172.2 A	P600 Axial	P600	General Purpose	60.3 V	Through Hole	54 V		87.7 V		-55 °C	175 ░C
Littelfuse/Commercial Vehicle Products 15KPA22A-B		Zener	407 A	P600 Axial	P600	General Purpose	24.57 V	Through Hole	22 V	1	37.1 V		-55 °C	175 ░C
Littelfuse/Commercial Vehicle Products 15KPA90		Zener	103.7 A	P600 Axial	P600	General Purpose	94.77 V	Through Hole	90 V	1	152.88 V		-55 °C	175 ░C
Littelfuse/Commercial Vehicle Products 15KPA58A-HR		Zener	161 A	P600 Axial	P600	General Purpose	64.8 V	Through Hole	58 V	1	93.8 V
Littelfuse/Commercial Vehicle Products 15KPA15A		Zener		P600 Axial	P600	General Purpose		Through Hole	15 V	1			-55 °C	175 ░C
Littelfuse/Commercial Vehicle Products 15KPA220-B		Zener	42.4 A	P600 Axial	P600	General Purpose	231.66 V	Through Hole	220 V	1	373.8 V		-55 °C	175 ░C

Catalog

TVS 15KW 33V 5% UNI P600 BULK RoHs

Key Features

• Glass passivated chip junction in P600 package

• 15 kW peak pulse capability at 10/1000μs, repetition rate (duty cycles): 0.01 %

• Fast response time: typically less than 1.0ps from 0 Volts to BV min

• Excellent clamping capability

• Typical failure mode is short from over-specified voltage or current

• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

• IEC-61000-4-2 ESD 30 kV (Air), 30 kV (Contact)

• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

• Low incremental surge resistance

Description

The 15KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Halogen-Free and RoHS compliant Typical maximum temperature coefficient ΔVBR = 0.1% — VBR@25°C Glass passivated chip junction in P600 package 15000W peak pulse capability at 10—1000Î¼s waveform, repetition rate (duty cycles):0.01% Fast response time: typically less than 1.0ps from 0 Volts to BV min Excellent clamping capability Low incremental surge resistance Typical IR less than 2Î¼A above 36V High temperature soldering guaranteed: 265°C./10 seconds/ 0.375" (9.5mm) lead length, 51bs., (2.3kg) tension Plastic package has Underwriters Laboratory Flammability classification 94V-O Matte Tin Lead-free plated
