M4616 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

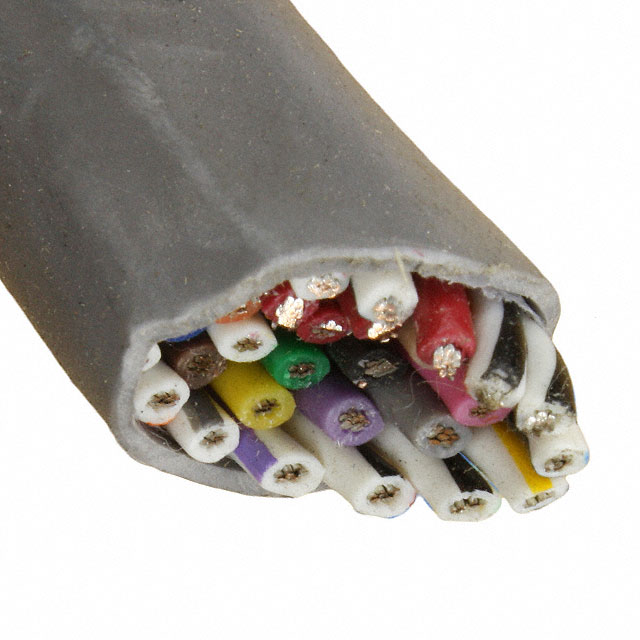

CABLE 30COND 24AWG SHLD 3000'
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Wire Gauge | Features | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Material | Jacket Color | Ratings | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 80 °C | -20 ░C | 30 | 24 AWG | Drain Wire Rip Cord | Foil | 7 | 32 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 8.97 mm | 0.353 " | 300 VDC | 914.4 m | 3000 ' |
ALPHA WIRE | 100 % | Aluminum | 80 °C | -20 ░C | 30 | 24 AWG | Drain Wire Rip Cord | Foil | 7 | 32 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 8.97 mm | 0.353 " | 300 VDC | 152.4 m | 500 ft |
