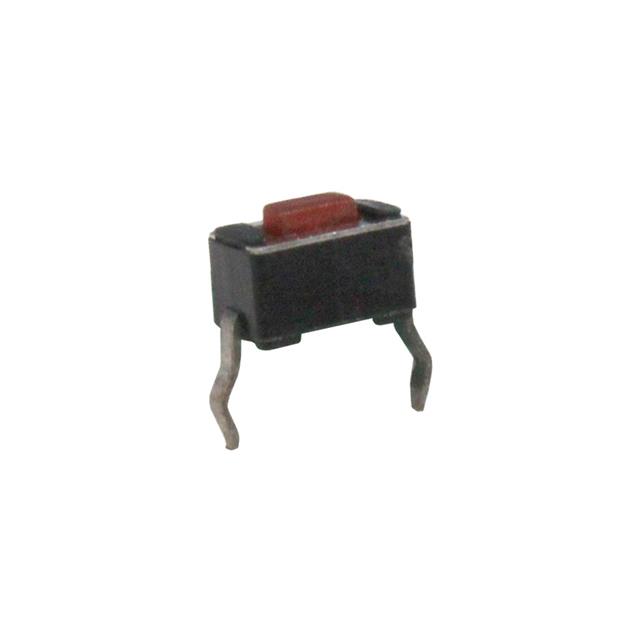

CT11014 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Operating Force | Actuator Orientation | Actuator Type | Termination Style | Outline [x] | Outline [y] | Switch Function | Actuator Height off PCB, Vertical [z] | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Contact Rating @ Voltage | Illumination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 180 gf | Top Actuated | Rectangular Button | PC Pin | 6 mm | 3.5 mm | Off-Mom | 4.3 mm | 85 °C | -40 C | SPST-NO | 0.05 A 50 VDC | Non-Illuminated | Through Hole |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 130 gf | Top Actuated | Rectangular Button | PC Pin | 6 mm | 3.5 mm | Off-Mom | 4.3 mm | 85 °C | -40 C | SPST-NO | 0.05 A 50 VDC | Non-Illuminated | Through Hole |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 260 gf | Top Actuated | Rectangular Button | PC Pin | 6 mm | 3.5 mm | Off-Mom | 4.3 mm | 85 °C | -40 C | SPST-NO | 0.05 A 50 VDC | Non-Illuminated | Through Hole |
