L77HDEH15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

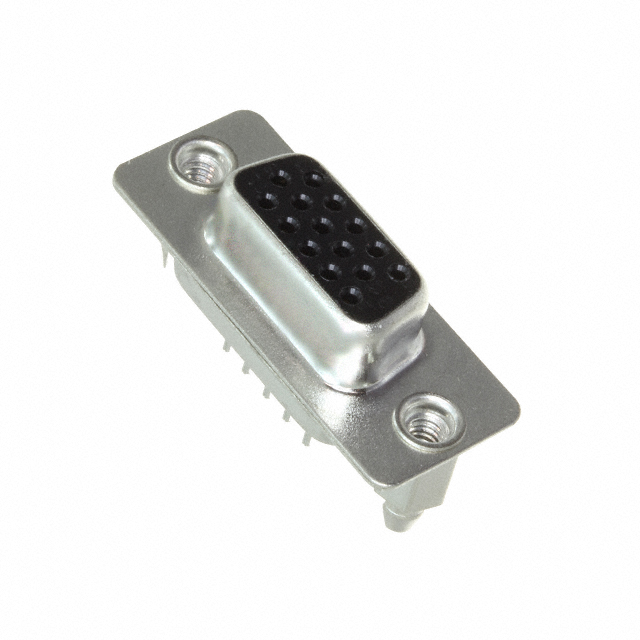

CONN D-SUB HD RCPT 15P VERT SLDR
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Contact Material | Contact Type | Connector Type | Number of Positions | Contact Finish | Connector Style | Current Rating (Amps) | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish Thickness | Number of Rows [custom] | Termination | Flange Feature | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 155 C | -55 C | Stamped | Phosphor Bronze | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | Board Lock | (DE E) High Density | 1 | UL94 V-0 | Flash | 3 | Solder | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | |||
Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 105 ░C | -55 C | Stamped | Brass | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | Board Lock | (DE E) High Density | 1 | UL94 V-0 | Flash | 3 | Solder | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | Black | ||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 155 C | -55 C | Stamped | Phosphor Bronze | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | (DE E) High Density | 1 | UL94 V-0 | Flash | 3 | Cable Side (4-40) Mating Side Female Screwlock (4-40) | Panel Mount | |||||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 105 ░C | -55 C | Stamped | Brass | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | (DE E) High Density | 1 | UL94 V-0 | Flash | 3 | Solder | Board Side (4-40) | Through Hole | Black | |||
Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 105 ░C | -55 C | Stamped | Brass | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | Board Lock | (DE E) High Density | 1 | UL94 V-0 | 3 | Solder | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | Black | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 105 ░C | -55 C | Stamped | Brass | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | Board Lock | (DE E) High Density | 1 | UL94 V-0 | Flash | 3 | Solder | Board Side (4-40) | Through Hole | Black | ||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | 155 C | -55 C | Stamped | Phosphor Bronze | Signal | Receptacle Female Sockets | 15 | Gold | D-Sub High Density | 3 A | (DE E) High Density | 1 | UL94 V-0 | Flash | 3 | Cable Side (4-40) | Free Hanging (In-Line) |
