9SG1212 Series

Catalog

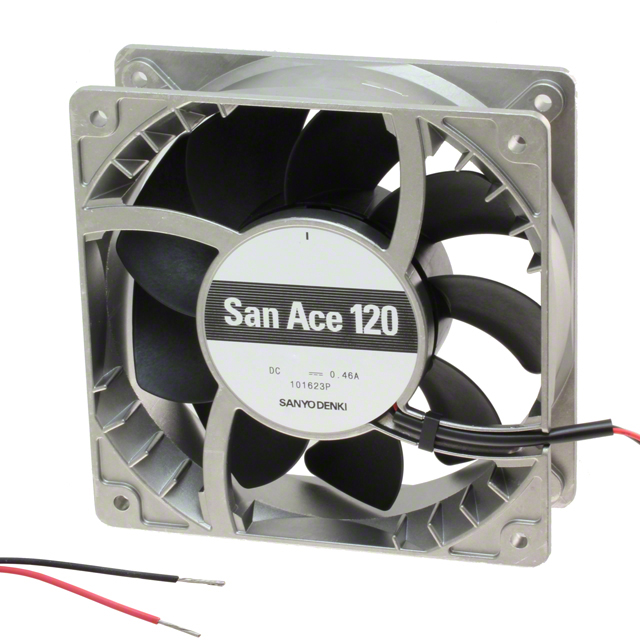

FAN AXIAL 119X38MM 12VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Weight [custom]	Weight [custom]	Termination	Fan Type	Voltage - Rated	Air Flow	Air Flow	Bearing Type	Noise	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Static Pressure	Static Pressure	Approval Agency	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Features	Size / Dimension [z]
Sanyo Denki America Inc. 9SG1212G102	4 A	40000 Hrs	Plastic	10.2 VDC	13.8 VDC	Plastic	0.882 lb	400.07 g	2 Wire Leads	Tubeaxial	12 VDC	260 CFM	7.28 mł/min	Ball	64 dB(A)	6000 RPM	-20 ░C	70 °C	38 mm	341.2 Pa	1.37 in H2O	CSA TUV UL	Square	119 mm	119 mm	48 W
Sanyo Denki America Inc. 9SG1212G101	4 A	40000 Hrs	Plastic	10.2 VDC	13.8 VDC	Plastic	0.882 lb	400.07 g	3 Wire Leads	Tubeaxial	12 VDC	260 CFM	7.28 mł/min	Ball	64 dB(A)	6000 RPM	-20 ░C	70 °C	38 mm	341.2 Pa	1.37 in H2O	CSA TUV UL	Square	119 mm	119 mm	48 W	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9SG1212G1D01	4 A	40000 Hrs	Aluminum	10.2 VDC	13.8 VDC	Plastic	0.882 lb	400.07 g	3 Wire Leads	Tubeaxial	12 VDC	260 CFM	7.28 mł/min	Ball	64 dB(A)	6000 RPM	-20 ░C	70 °C	38 mm	341.2 Pa	1.37 in H2O	CSA TUV UL		120 mm		48 W	Locked Rotor Sensor	120 mm
