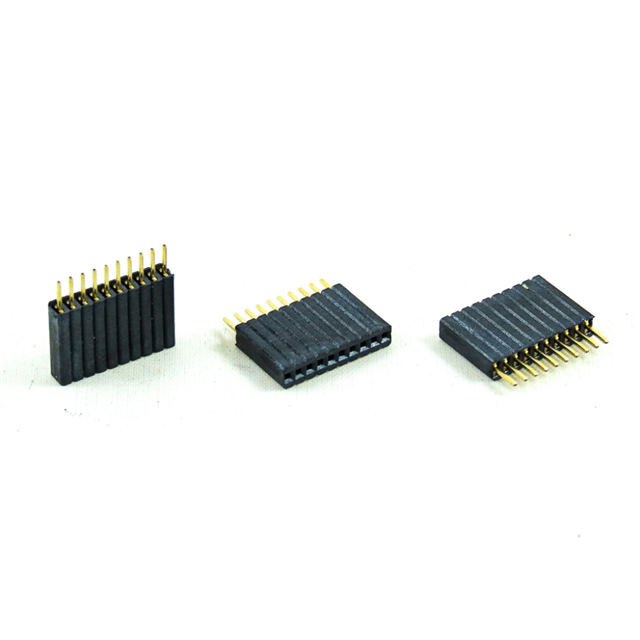

2246 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, SINGLE ROW, 25 PIN,

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Type	Mounting Type	Number of Positions Loaded	Termination	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Oupiin 2246-1X25G00SU	Square	Copper Alloy	Plastic	Flash	Female Socket	Through Hole	All	Solder	Push-Pull	Socket	Flash	UL94 V-0	0.335 in	8.5 mm	1	Gold	Gold	0.118 in	3 mm	25	1.27 mm	0.05 in	-40 C	105 ░C
Oupiin 2246-1X21G00SU	Square	Copper Alloy	Plastic	Flash	Female Socket	Through Hole	All	Solder	Push-Pull	Socket	Flash	UL94 V-0	0.335 in	8.5 mm	1	Gold	Gold	0.118 in	3 mm	21	1.27 mm	0.05 in	-40 C	105 ░C
Oupiin 2246-1X06G00SB	Square	Copper Alloy	Plastic	Flash	Female Socket	Through Hole	All	Solder	Push-Pull	Socket	Flash	UL94 V-0	0.335 in	8.5 mm	1	Gold	Gold	0.118 in	3 mm	6	1.27 mm	0.05 in	-40 C	105 ░C
Oupiin 2246-1X17G00SU	Square	Copper Alloy	Plastic	Flash	Female Socket	Through Hole	All	Solder	Push-Pull	Socket	Flash	UL94 V-0	0.335 in	8.5 mm	1	Gold	Gold	0.118 in	3 mm		1.27 mm	0.05 in	-40 C	105 ░C
Oupiin 2246-1X26G00SU	Square	Copper Alloy	Plastic	Flash	Female Socket	Through Hole	All	Solder	Push-Pull	Socket	Flash	UL94 V-0	0.335 in	8.5 mm	1	Gold	Gold	0.118 in	3 mm	26	1.27 mm	0.05 in	-40 C	105 ░C
