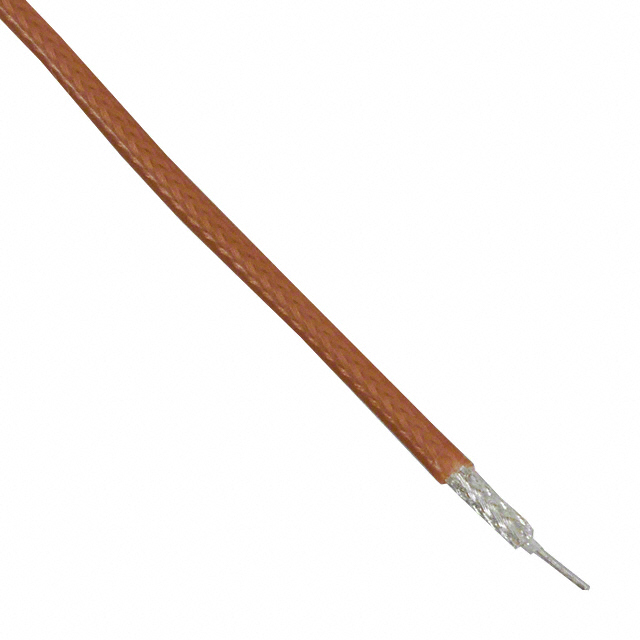

9178B Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE COAXIAL RG178B 30AWG 100'
| Part | Impedance | Wire Gauge | Wire Gauge | Conductor Material | Length [x] | Length [x] | Dielectric Material | Shield Type | Jacket Color | Jacket (Insulation) Material | VoP, Velocity of Propagation | Cable Type | Shield Material | Cable Group | Conductor Strand [custom] | Conductor Strand [custom] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 50 Ohms | 30 AWG | 0.06 mm² | Steel Silver Coated | 100 ft | 30.48 m | Tetrafluoroethylene (TFE) | Braid | Natural | Fluorinated Ethylene-Propylene (FEP) | 70 | Coaxial | Copper Silver Coated | RG-178B | 7 | 38 AWG | 0.034 " | 0.86 mm | 1.8 mm | 0.071 " | 96 % |
ALPHA WIRE | 50 Ohms | 30 AWG | 0.06 mm² | Steel Silver Coated | 100 ft | 30.48 m | Tetrafluoroethylene (TFE) | Braid | Brown | Fluorinated Ethylene-Propylene (FEP) | 70 | Coaxial | Copper Silver Coated | RG-178B | 7 | 38 AWG | 0.034 " | 0.86 mm | 1.8 mm | 0.071 " | 96 % |
