0997-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

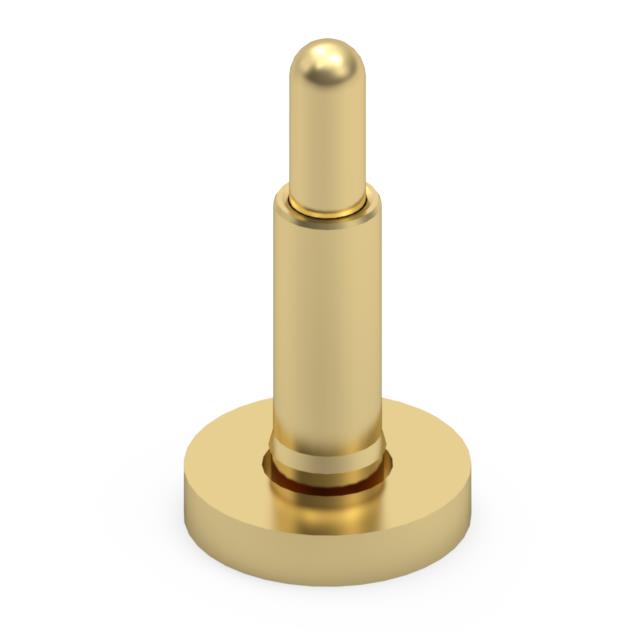

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] | Recommended Working Height | Recommended Working Height | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Mounting Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Type | Operating Force - Mid Compression | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.24 in | 6.1 mm | Gold | 0.042 in | 1.07 mm | 0.267 in | 6.79 mm | 1000000 | 0.295 in | 7.49 mm | 20 µin | 0.51 µm | 10 gf | Surface Mount | 0.159 in | 4.04 mm | Sleeve & Plunger (Pogo Pins) | 60 gf | 5.2 A | Brass Alloy |
