1775443 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.059 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, NATURAL INSULATOR

Part	Mounting Type	Applications	Contact Finish - Post	Connector Type	Voltage Rating	Shrouding	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Insulation Material	Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Type	Material Flammability Rating	Termination	Features
TE Connectivity Raychem Cable Protection 1775443-4	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	4	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder

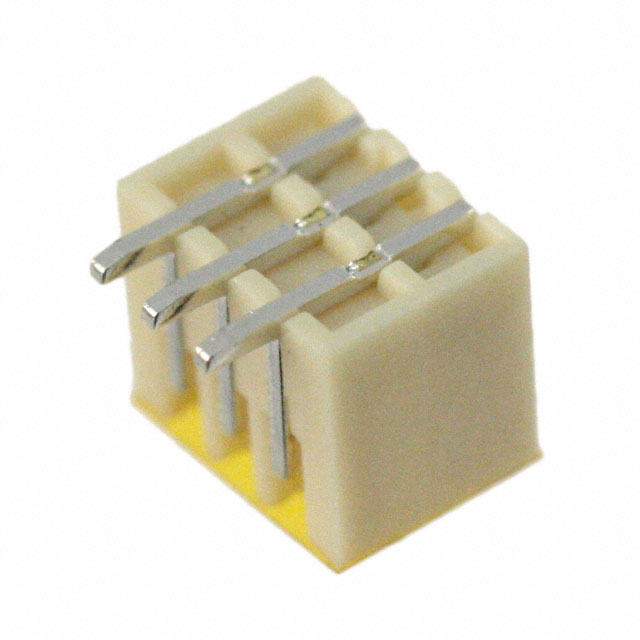

TE Connectivity Raychem Cable Protection 5-1775443-3	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square		Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place

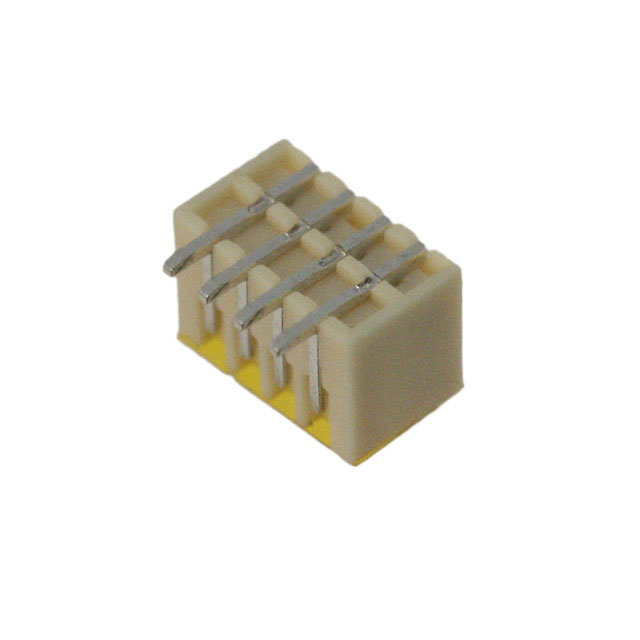

TE Connectivity Raychem Cable Protection 5-1775443-4	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	4	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place

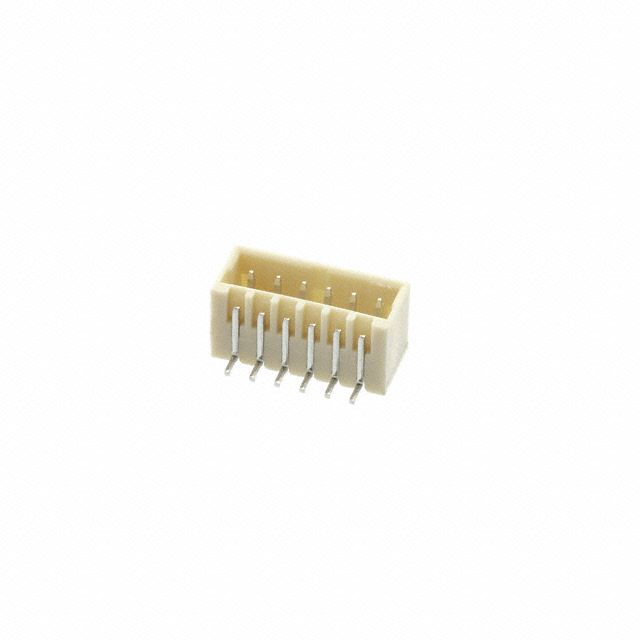

TE Connectivity Raychem Cable Protection 5-1775443-6	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	6	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place

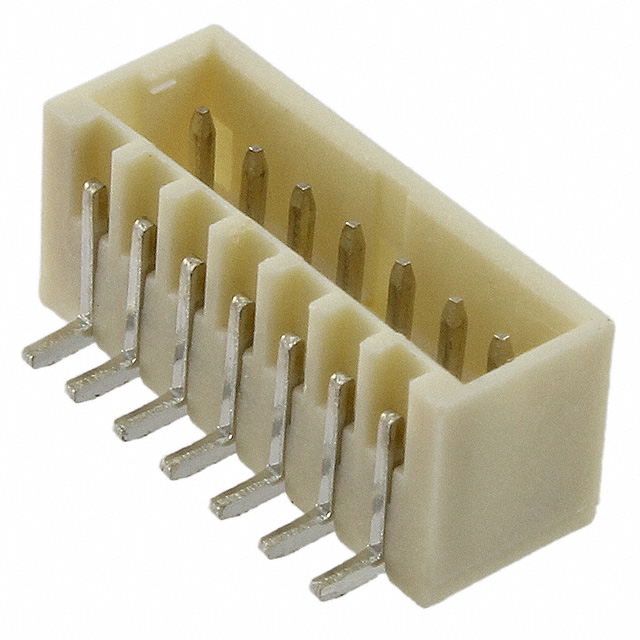

TE Connectivity Raychem Cable Protection 1775443-7	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	7	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder

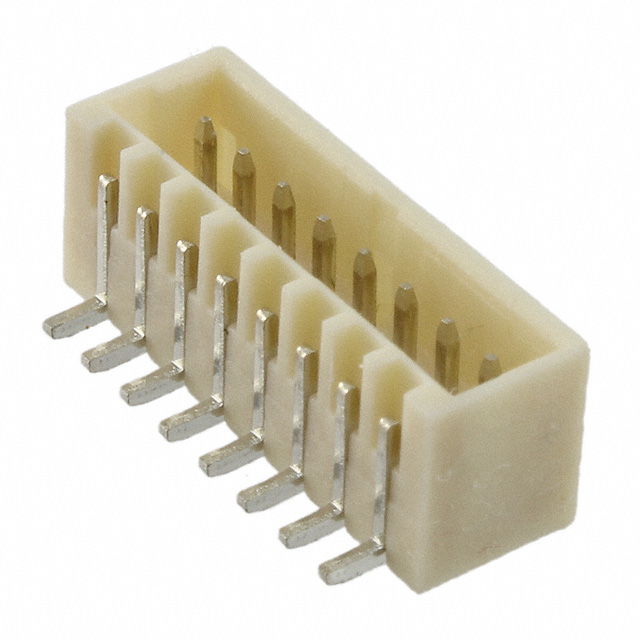

TE Connectivity Raychem Cable Protection 5-1775443-8	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	8	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place

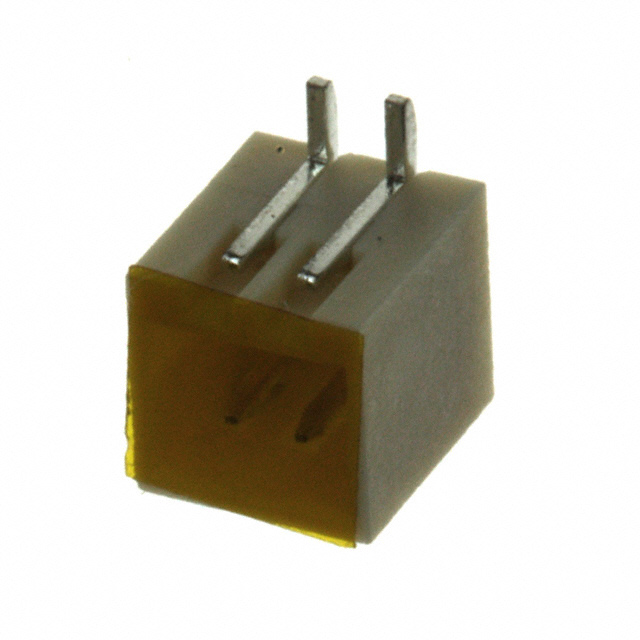

TE Connectivity Raychem Cable Protection 5-1775443-2	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	2	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place

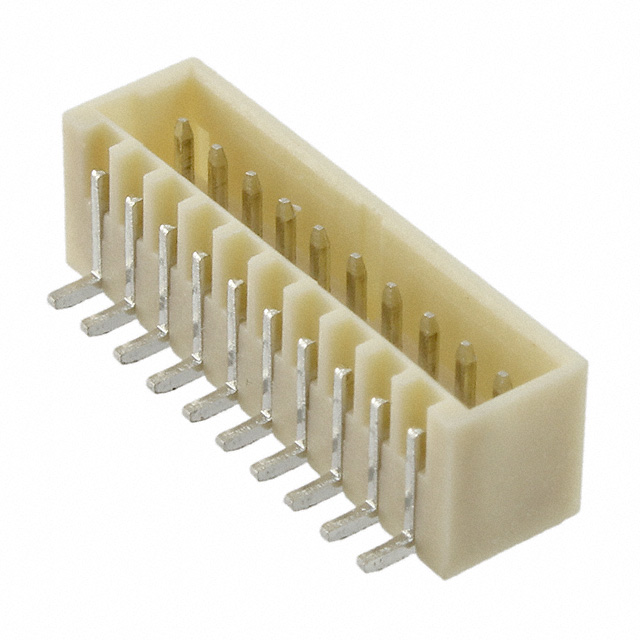

TE Connectivity Raychem Cable Protection 6-1775443-0	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	10	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place
TE Connectivity Raychem Cable Protection 5-1775443-7	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square	7	Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place

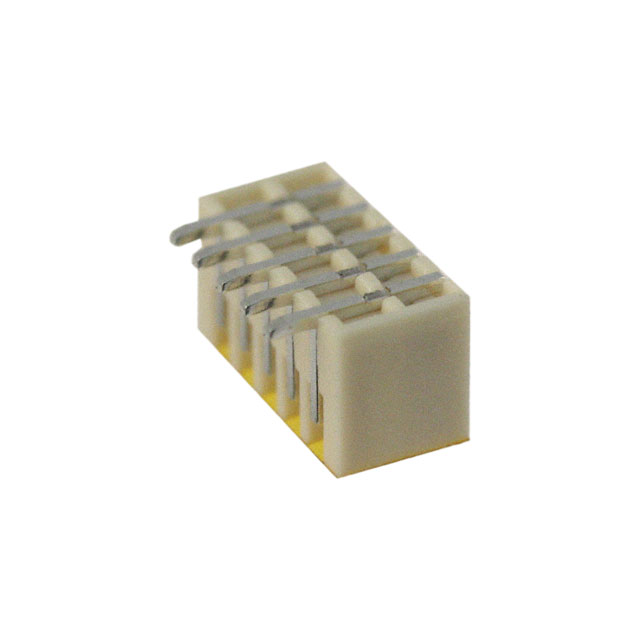

TE Connectivity Raychem Cable Protection 5-1775443-5	Surface Mount	Automotive General Purpose Industrial Medical	Tin	Header	250 VAC	Shrouded - 4 Wall	3 A	0.106 in	2.7 mm	Brass	All	0.197 in	5 mm	2.54 çm	100 çin	Square		Thermoplastic	Board to Cable/Wire	1	105 ░C	-55 °C	Natural	Male Pin	UL94 V-0	Solder	Pick and Place
