20HV11B Series
Manufacturer: KEMET
Beta
⌘K

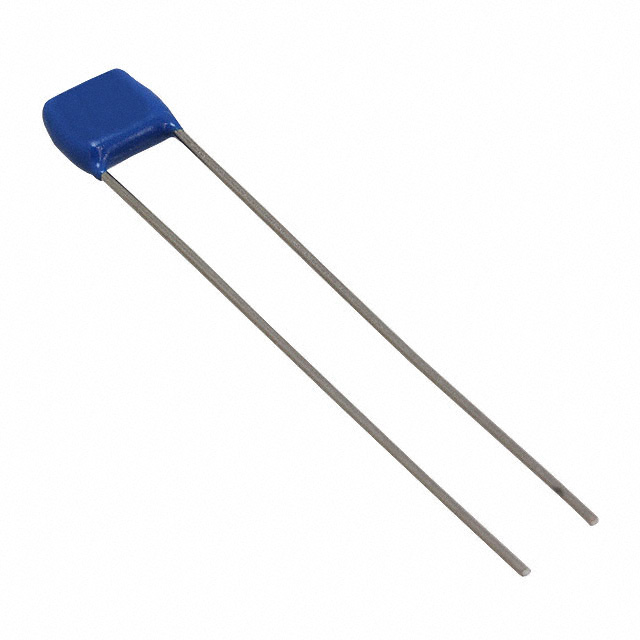

CAP CER 1000PF 2KV X7R RADIAL
| Part | Tolerance [Max] | Tolerance [Min] | Package / Case | Capacitance | Temperature Coefficient | Voltage - Rated | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) | Applications | Lead Style | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Lead Spacing | Lead Spacing | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 100 % | 0 % | Radial | 0.001 µF | X7R | 2000 V | 2 kV | 0.3 in | 7.62 mm | Downhole | Straight | Through Hole | 8.13 mm | 0.32 " | 6.35 mm | 0.25 in | High Temperature High Voltage | 200 °C | -55 C | 0.2 in | 5.08 mm | |
KEMET | Radial | 0.001 µF | X7R | 2000 V | 2 kV | 0.3 in | 7.62 mm | Downhole | Straight | Through Hole | 8.13 mm | 0.32 " | 6.35 mm | 0.25 in | High Temperature High Voltage | 200 °C | -55 C | 0.2 in | 5.08 mm | 20 % |
