305-048 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 48POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Color	Number of Positions/Bay/Row	Number of Rows [custom]	Number of Positions	Gender	Termination	Card Type	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 305-048-500-208	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Panel Mount	Green	24	2	48	Female	Solder Eyelet(s)	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in

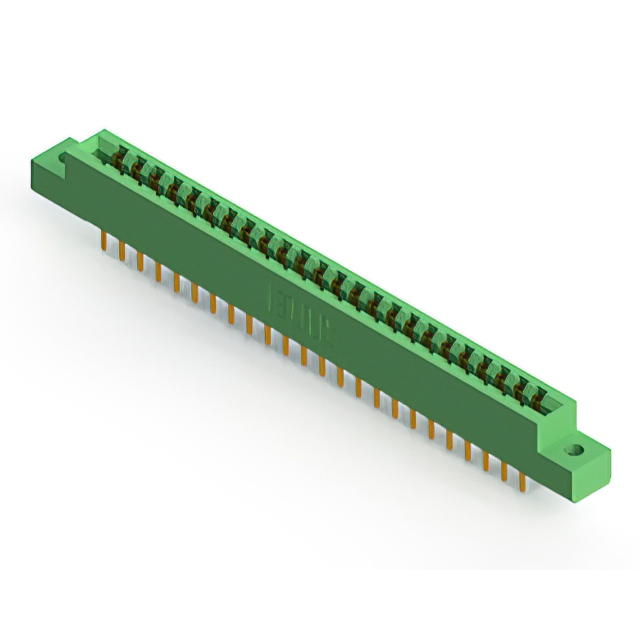

EDAC Inc. 305-048-520-502	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Gold	Panel Mount Through Hole	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in	3.25 mm	0.128 "

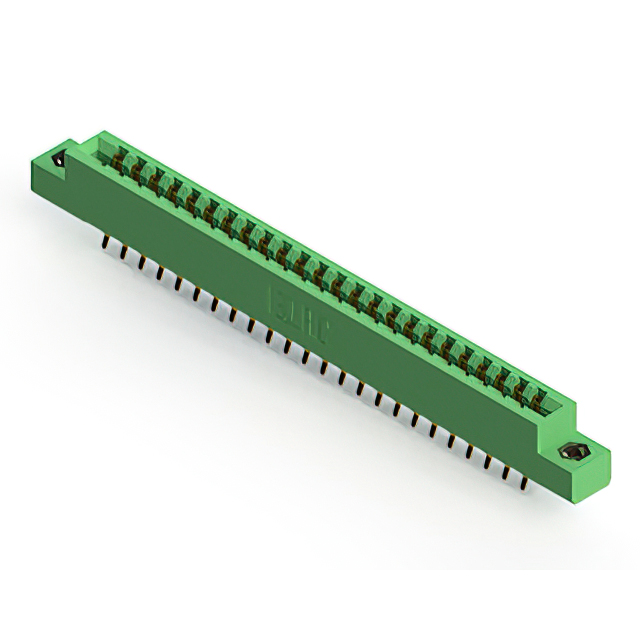

EDAC Inc. 305-048-556-508	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Board Edge Straddle Mount	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in			Card Extender

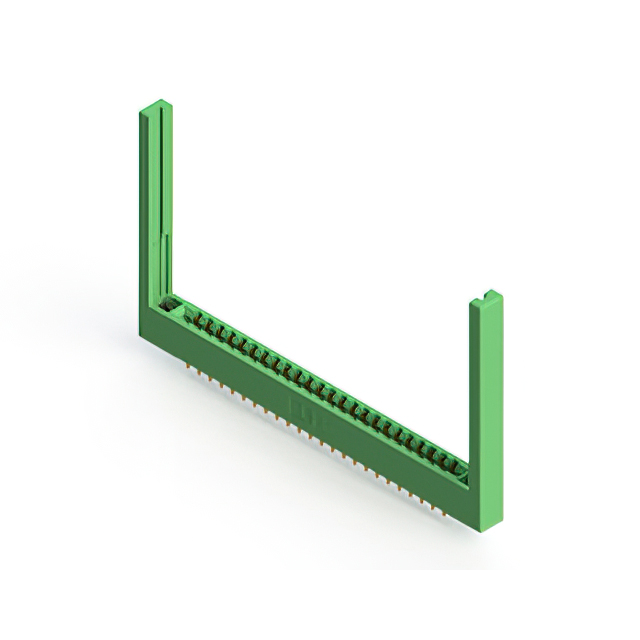

EDAC Inc. 305-048-521-568	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Panel Mount Through Hole	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in
EDAC Inc. 305-048-500-502	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Gold	Panel Mount	Green	24	2	48	Female	Solder Eyelet(s)	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in	3.25 mm	0.128 "

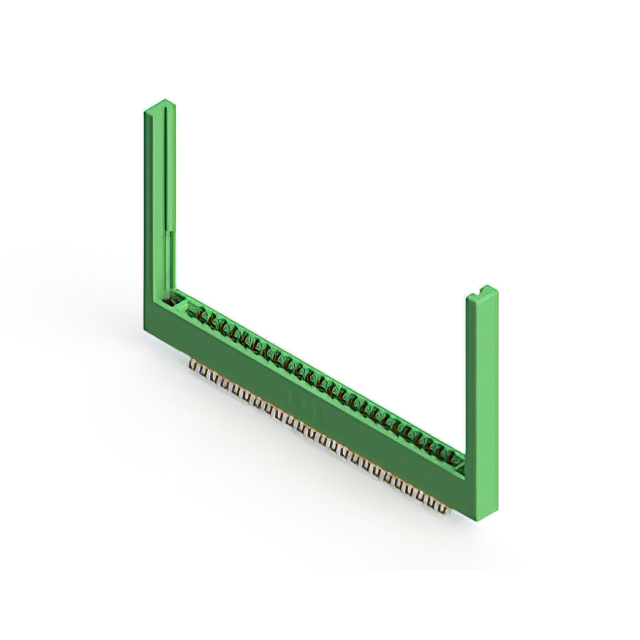

EDAC Inc. 305-048-555-568	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Board Edge Straddle Mount	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in			Card Extender Card Guides

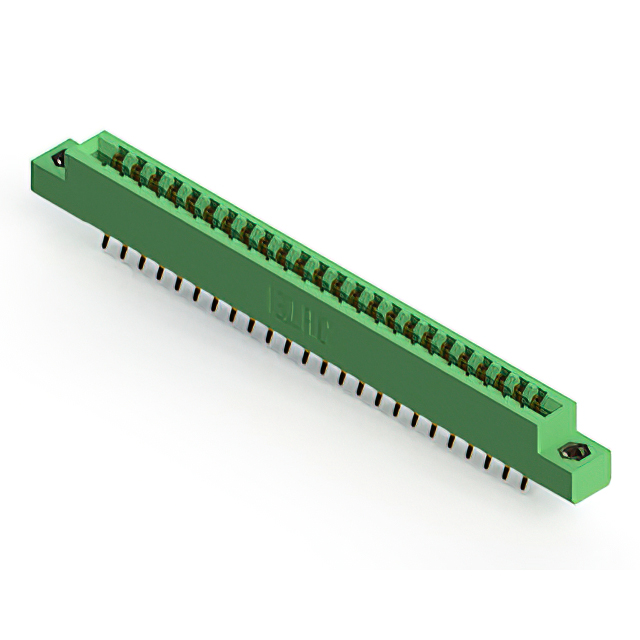

EDAC Inc. 305-048-556-208	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Board Edge Straddle Mount	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in			Card Extender

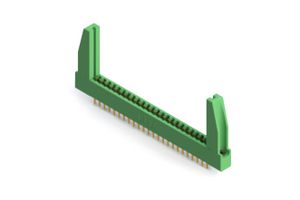

EDAC Inc. 305-048-520-578	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Panel Mount Through Hole	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in
EDAC Inc. 305-048-556-504	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Gold	Board Edge Straddle Mount	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in	3.96 mm	0.156 "	Card Extender

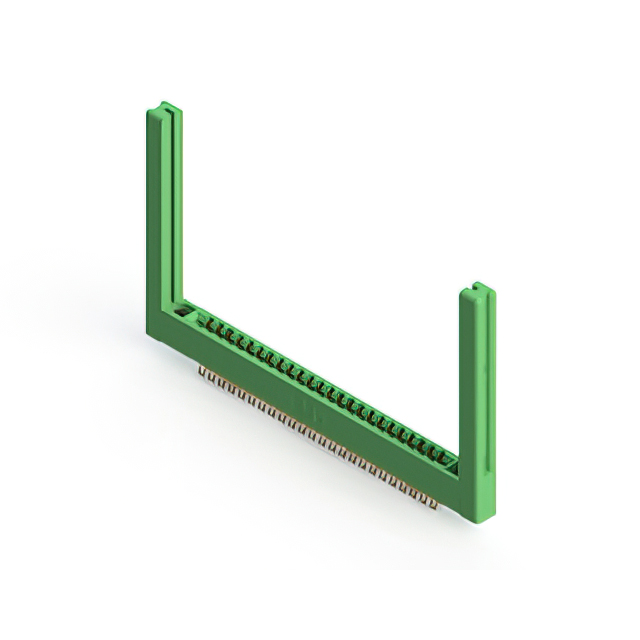

EDAC Inc. 305-048-555-258	2	Polyester Thermoplastic	Semi Bellows	Dual	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	-40 C	105 ░C	Gold	Board Edge Straddle Mount	Green	24	2	48	Female	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	3.96 mm	0.156 in			Card Extender Card Guides
