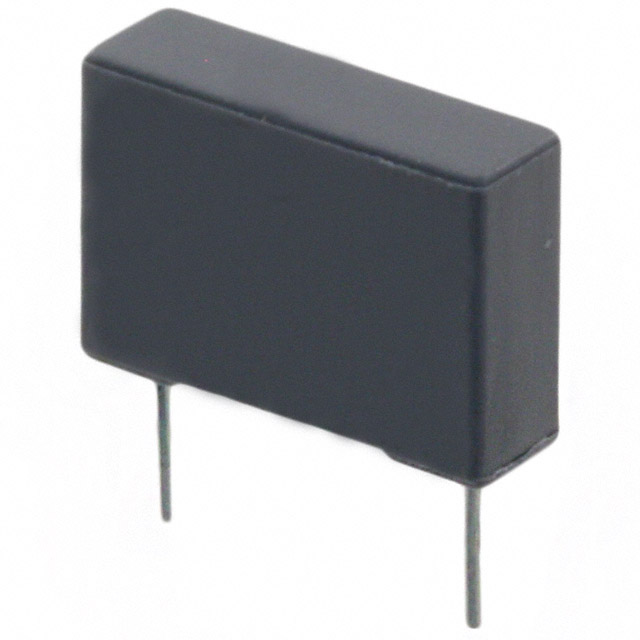

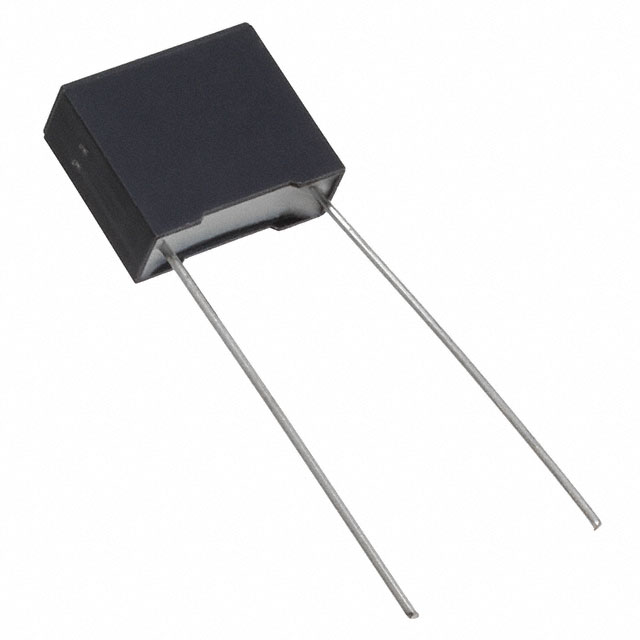

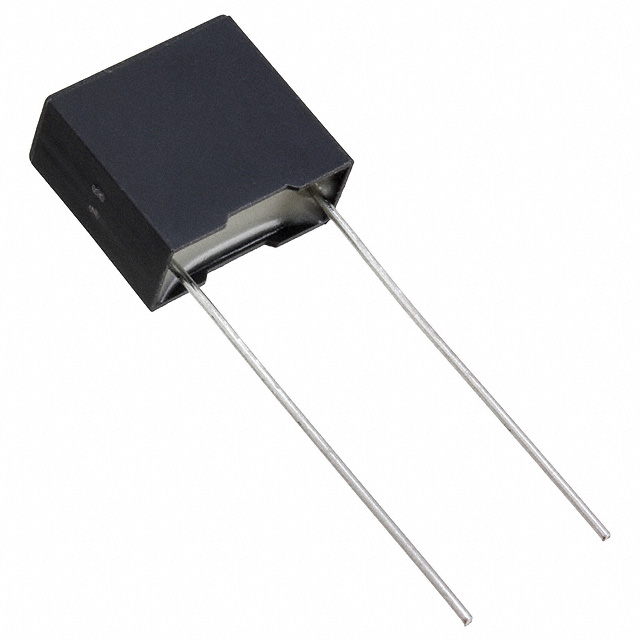

R46 X2 275 Series

Manufacturer: KEMET

Catalog

Catalog

SAFETY CAPACITORS 275VOLTS 0.22UF 10%

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Applications	Ratings	Voltage Rating - DC	Dielectric Material	Lead Spacing	Lead Spacing	Capacitance	Termination	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
KEMET R46KN322051M1K	-40 C	110 °C	10 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	0.886 in	22.5 mm	0.22 µF	PC Pins	275 V	0.594 in	15.1 mm	Through Hole	1.043 in	0.236 "	26.5 mm	6 mm	Radial
KEMET R46KR415045M1K	-40 C	110 °C	10 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	1.083 in	27.5 mm	1500 nF	PC Pins	275 V	0.87 in	22.1 mm	Through Hole	1.26 in	0.512 "	32 mm	13 mm	Radial
KEMET R46KI3150ZPM1M	-40 C	110 °C	20 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	0.591 in	15 mm	0.15 ÁF	PC Pins	275 V			Through Hole	0.709 in	0.236 "	18 mm	6 mm	Radial	0.693 in	17.6 mm
KEMET R46KI315000M2K	-40 C	110 °C	10 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	0.591 in	15 mm	0.15 ÁF	PC Pins	275 V	0.476 "		Through Hole	0.709 in	0.236 "	18 mm	6 mm	Radial			12.1 mm
KEMET R46KR447000M1M	-40 C	110 °C	20 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	1.083 in	27.5 mm	4.7 µF	PC Pins	275 V			Through Hole	1.26 in	0.866 in	32 mm	22 mm	Radial	37.1 mm			1.461 in
KEMET R46KF2470DQN0M	-40 C	110 °C	20 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	0.394 in	10 mm		PC Pins	275 V	0.437 in	11.1 mm	Through Hole	0.512 "	0.197 "	13 mm	5 mm	Radial
KEMET R46KI333050M1M	-40 C	110 °C	20 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	0.591 in	15 mm	0.33 µF	PC Pins	275 V			Through Hole	0.709 in	0.394 in	18 mm	10 mm	Radial			16.1 mm	0.634 "
KEMET R46KI3220JPM1M
KEMET R46KI3220JH01K
KEMET R46KN3150JH01K	-40 C	110 °C	10 %	EMI RFI Suppression	X2	560 V	Polypropylene (PP) Metallized	0.886 in	22.5 mm	0.15 ÁF	PC Pins	275 V	0.594 in	15.1 mm	Through Hole	1.043 in	0.236 "	26.5 mm	6 mm	Radial
