085003 Series

Manufacturer: Molex

Catalog

CONN DIN HDR 96POS PCB RA GOLD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Material - Insulation	Termination	Style	Pitch [x]	Pitch [x]	Number of Positions Loaded	Number of Rows	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Connector Type	Level, Class	Style	Number of Positions Loaded
Molex 0850031483	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C	2.54 mm	0.1 in	All	3	Through Hole Right Angle	Mounting Clips	24 µin	0.61 µm	Gold	96	Header Male Pins
Molex 0850032385
Molex 0850030218	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C	2.54 mm	0.1 in	All	3	Through Hole		24 µin	0.61 µm	Gold	96	Header Male Pins
Molex 0850030189	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C	2.54 mm	0.1 in	All	3	Through Hole Right Angle		24 µin	0.61 µm	Gold	96	Header Male Pins
Molex 0850032529	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C	2.54 mm	0.1 in	All	3	Through Hole Right Angle		39.4 Áin	1 Ám	Gold	96	Header Male Pins	1
Molex 0850030050	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C/2	2.54 mm	0.1 in		3	Through Hole Right Angle		24 µin	0.61 µm	Gold	48	Header Male Pins		1/2 C	32
Molex 0850032799	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C	2.54 mm	0.1 in	All	3	Through Hole Right Angle	Mounting Clips	10 Áin	0.25 Ám	Gold	96	Header Male Pins	3
Molex 0850037005	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C	2.54 mm	0.1 in	All	3	Through Hole Right Angle		10 Áin	0.25 Ám	Gold	96	Header Male Pins	3

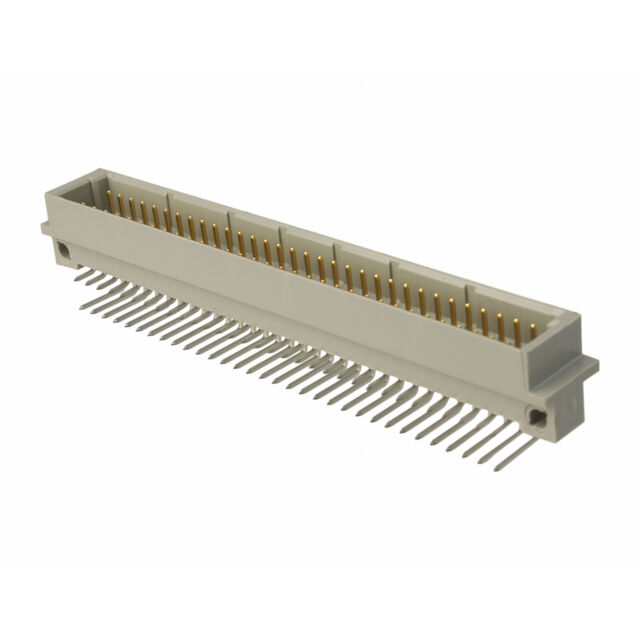

Molex 0850030127	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic Glass Filled	Solder	C	2.54 mm	0.1 in		3	Through Hole Right Angle		24 µin	0.61 µm	Gold	96	Header Male Pins			64
Molex 0850031794	-55 °C	125 °C	UL94 V-0	Polyester Thermoplastic	Solder	C/2	2.54 mm	0.1 in	All	3	Through Hole Right Angle	Mounting Clips	24 µin	0.61 µm	Gold	48	Header Male Pins		1/2 C
