YB15NK Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Mechanical Life	Electrical Life	Type	Color - Actuator/Cap	Mounting Type	Illumination Type, Color	Termination Style	Voltage Rating - AC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Marking	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Illumination Voltage (Nominal)	Actuator Type	Features	Voltage Rating - DC

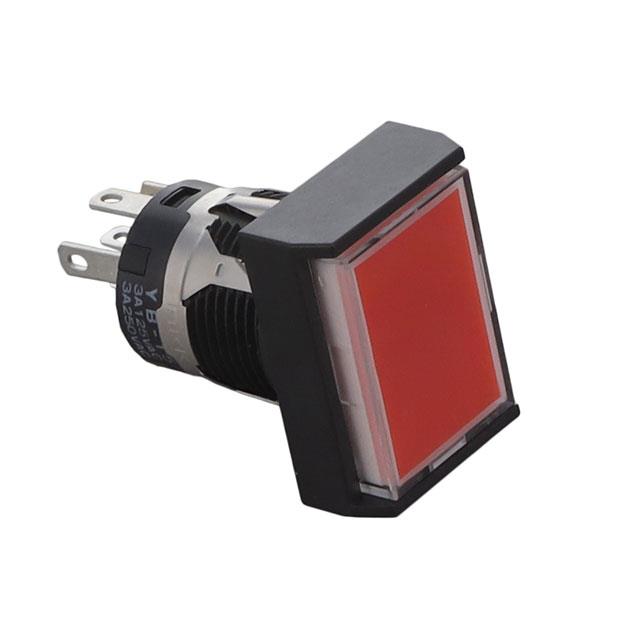

NKK Switches YB15NKW01-5C-JC	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	LED Red	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	3 A	1.9 VDC	Button Rectangular	Tactile Feedback	30 V
NKK Switches YB15NKW01-5D-JB	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	3 A	2 VDC	Button Rectangular	Tactile Feedback	30 V
NKK Switches YB15NKG01-5D24-JB	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	28 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	0.4 VA	24 V	Button Rectangular	Tactile Feedback	28 V
NKK Switches YB15NKG01-5D-JB	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	28 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	0.4 VA	2 VDC	Button Rectangular	Tactile Feedback	28 V
NKK Switches YB15NKW01-5D-JD	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	3 A	2 VDC	Button Rectangular	Tactile Feedback	30 V
NKK Switches YB15NKW01-5F05-JB	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Green LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	3 A	5 VDC	Button Rectangular	Tactile Feedback	30 V
NKK Switches YB15NKW01-CB	1000000 Cycles	100000 Cycles	Standard	Red	Panel Mount Snap-In		Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	70 °C	-25 °C	SPDT	No Marking	16 mm	3 A		Button Rectangular	Tactile Feedback	30 V
NKK Switches YB15NKG01-6F-JB	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Green LED	Solder Quick Connect - 0.110" (2.8mm)	28 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	0.4 VA	3.3 VDC	Button Rectangular	Tactile Feedback	28 V
NKK Switches YB15NKW01-2CF02-JB	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Green/Red LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	3 A	2 VDC	Button Rectangular	Tactile Feedback	30 V
NKK Switches YB15NKW01-5F05-JF	1000000 Cycles	100000 Cycles	Illuminated Standard	Clear	Panel Mount Snap-In	Green LED	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-Mom	50 °C	-25 °C	SPDT	No Marking	16 mm	3 A	5 VDC	Button Rectangular	Tactile Feedback	30 V
