2232876 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

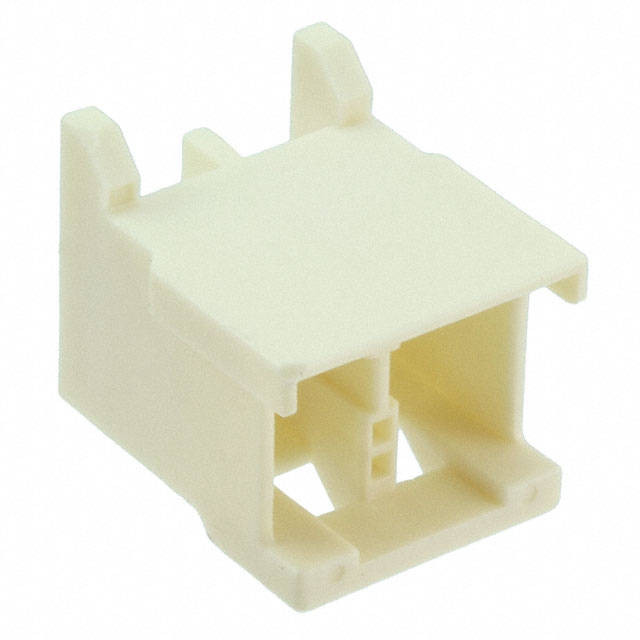

GIC6.0MM CONNECTOR HEAD HOUSING
| Part | Insulation Height | Insulation Height | Contact Finish - Post | Connector Type | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Shape | Number of Positions | Shrouding | Fastening Type | Number of Positions Loaded | Termination | Number of Rows | Features | Material Flammability Rating | Contact Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 14.5 mm | 0.571 in | Tin | Header | Through Hole | 0.236 in | 6 mm | Natural | Rectangular | 2 | Shrouded - 4 Wall | Latch Holder | All | Kinked Pin Solder | 1 | Board Guide | UL VW-1 | Tab | Board to Cable/Wire |
 TE Connectivity Raychem Cable Protection | 14.5 mm | 0.571 in | Tin | Header | Through Hole | 0.236 in | 6 mm | Natural | Rectangular | 2 | Shrouded - 4 Wall | Latch Holder | All | Kinked Pin Solder | 1 | Board Guide | UL VW-1 | Tab | Board to Cable/Wire |
