XC6501 Series

Catalog

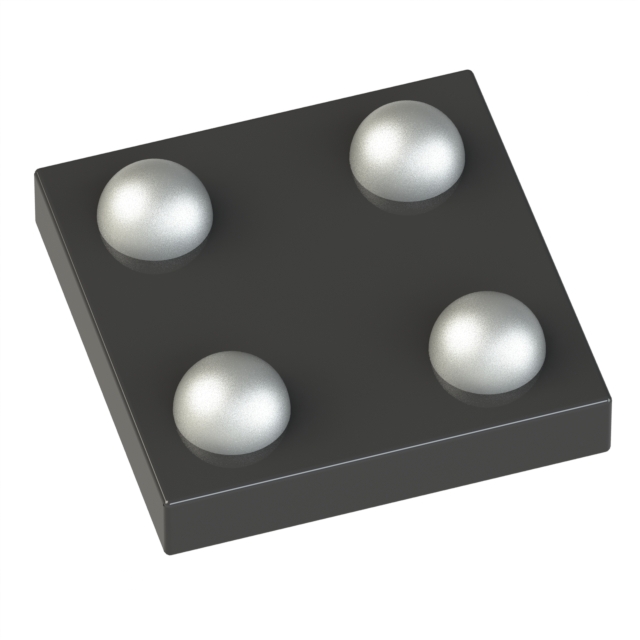

IC REG LIN 4.85V 200MA WLP-4-01

...

Part	Control Features	Output Configuration	Number of Regulators	Voltage - Input (Max) [Max]	PSRR	Output Type	Voltage Dropout (Max) [Max]	Current - Output	Protection Features	Current - Quiescent (Iq)	Package / Case	Voltage - Output (Min/Fixed)	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed) [Min]
Torex Semiconductor Ltd XC6501D48B0R-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.33 V	200 mA	Over Current	23 µA	4-XFBGA WLBGA	4.85 V	Surface Mount	WLP-4-01	85 °C	-40 °C
Torex Semiconductor Ltd XC6501A46AMR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.33 V	200 mA	Over Current	23 µA	SC-74A SOT-753		Surface Mount	SOT-25	85 °C	-40 °C	4.65 V
Torex Semiconductor Ltd XC6501D461GR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.33 V	200 mA	Over Current	23 µA	4-UDFN Exposed Pad	4.6 V	Surface Mount	4-USP (1.2x1.6)	85 °C	-40 °C
Torex Semiconductor Ltd XC6501D39ANR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.34 V	200 mA	Over Current	22 µA	SC-82	3.95 V	Surface Mount	SSOT-24	85 °C	-40 °C
Torex Semiconductor Ltd XC6501D22AGR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.41 V	200 mA	Over Current	19 µA	4-UDFN Exposed Pad	2.25 V	Surface Mount	4-USP (1.2x1.6)	85 °C	-40 °C
Torex Semiconductor Ltd XC6501B281MR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.36 V	200 mA	Over Current	20 çA	SC-74A SOT-753	2.8 V	Surface Mount	SOT-25	85 °C	-40 °C
Torex Semiconductor Ltd XC6501C351MR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.35 V	200 mA	Over Current	21 µA	SC-74A SOT-753	3.5 V	Surface Mount	SOT-25	85 °C	-40 °C
Torex Semiconductor Ltd XC6501B411GR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.34 V	200 mA	Over Current	22 µA	4-UDFN Exposed Pad	4.1 V	Surface Mount	4-USP (1.2x1.6)	85 °C	-40 °C
Torex Semiconductor Ltd XC6501D20ANR-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.43 V	200 mA	Over Current	18 µA	SC-82	2.05 V	Surface Mount	SSOT-24	85 °C	-40 °C
Torex Semiconductor Ltd XC6501C49B0R-G	Enable	Positive	1	6 V	50 dB	1.81 mOhm	0.33 V	200 mA	Over Current	23 µA	4-XFBGA WLBGA	4.95 V	Surface Mount	WLP-4-01	85 °C	-40 °C
