MPC8306 Series

Catalog

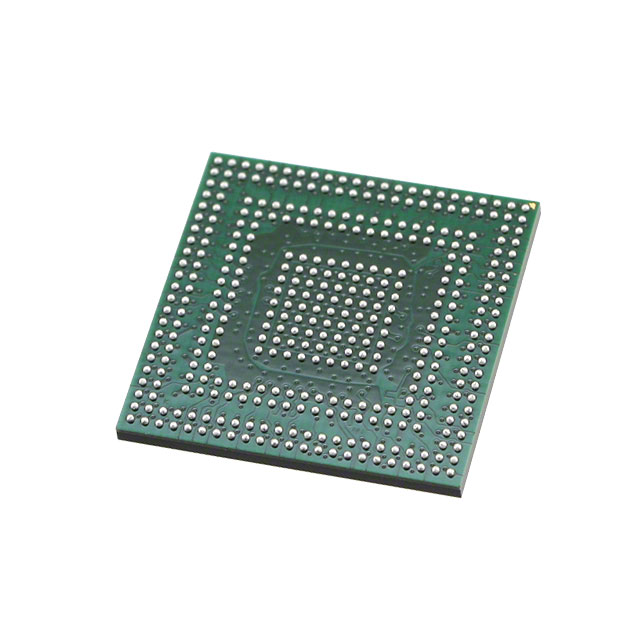

IC MPU MPC83XX 133MHZ 369BGA

Part	Package / Case	Voltage - I/O	Number of Cores/Bus Width	USB	Ethernet	Ethernet [Max]	Ethernet [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Speed	Additional Interfaces	Co-Processors/DSP	RAM Controllers	Supplier Device Package
Freescale Semiconductor - NXP MPC8306SCVMABDCA	369-LFBGA	1.8 V 3.3 V	1 Core 32 Bit	USB 2.0 (1)	(3)	100 Mbps	10 Mbps	Surface Mount	105 °C	-40 °C	PowerPC e300c3	133 MHz	DUART I2C SPI TDM	Communications QUICC Engine	DDR2	369-PBGA (19x19)
Freescale Semiconductor - NXP MPC8306SVMADDCA	369-LFBGA	1.8 V 3.3 V	1 Core 32 Bit	USB 2.0 (1)	(3)	100 Mbps	10 Mbps	Surface Mount	105 °C	0 °C	PowerPC e300c3	266 MHz	DUART I2C SPI TDM	Communications QUICC Engine	DDR2	369-PBGA (19x19)
Freescale Semiconductor - NXP MPC8306SVMAFDCA	369-LFBGA	1.8 V 3.3 V	1 Core 32 Bit	USB 2.0 (1)	(3)	100 Mbps	10 Mbps	Surface Mount	105 °C	0 °C	PowerPC e300c3	333 MHz	DUART I2C SPI TDM	Communications QUICC Engine	DDR2	369-PBGA (19x19)
Freescale Semiconductor - NXP MPC8306VMAFDCA	369-LFBGA	1.8 V 3.3 V	1 Core 32 Bit	USB 2.0 (1)	(3)	100 Mbps	10 Mbps	Surface Mount	105 °C	0 °C	PowerPC e300c3	333 MHz	CAN DUART I2C MMC/SD SPI TDM	Communications QUICC Engine	DDR2	369-PBGA (19x19)
Freescale Semiconductor - NXP MPC8306SCVMACDCA	369-LFBGA	1.8 V 3.3 V	1 Core 32 Bit	USB 2.0 (1)	(3)	100 Mbps	10 Mbps	Surface Mount	105 °C	-40 °C	PowerPC e300c3	200 MHz	DUART I2C SPI TDM	Communications QUICC Engine	DDR2	369-PBGA (19x19)
