CAB430RF Series
Manufacturer: GCT
Beta
⌘K

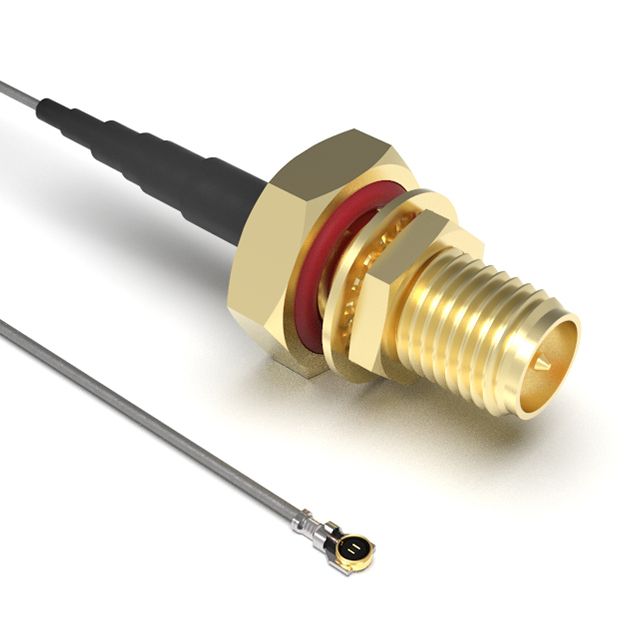

CBL ASSY RPSMA-MHF5L J-PL 7.874"
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Style | Cable Impedance | 1st Connector Mounting Type | 1st Connector | 2nd Contact Gender | Color | Frequency - Max [Max] | Cable Type | Cable Type [diameter] | 2nd Connector | Features | 1st Contact Gender | 1st Connector Mounting Feature | 2nd Connector Mounting Type | Length | Length | Ingress Protection | Overall Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
85 °C | -40 C | RP-SMA to I-PEX MHF5L | 50 Ohms | Panel Mount | RP-SMA Jack | Female | Gray | 6000 MHz | Coaxial Cable | 1.13 mm | I-PEX MHF5L Plug Right Angle | IP Rated Unmated | Male | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 200 mm | 7.874 in | IP67/IP68 | 50 Ohms | |
85 °C | -40 C | RP-SMA to IPEX MHF5L | 50 Ohms | Panel Mount | RP-SMA Jack | Female | Gray | 6000 MHz | Coaxial Cable | 1.13 mm | IPEX MHF5L Plug Right Angle | IP Rated Unmated | Male | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 200 mm | 7.874 in | IP67/IP68 | 50 Ohms |
