R11255 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC F 27000 UG1619U BHD
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Includes | Body Finish | Mating Cycles | Insertion Loss | Voltage Rating | Center Contact Plating | Mounting Feature | Housing Color | Features | Fastening Type | Mounting Type | Impedance | Connector Style | Frequency - Max [Max] | Contact Termination | Shield Termination | Center Contact Material | Connector Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

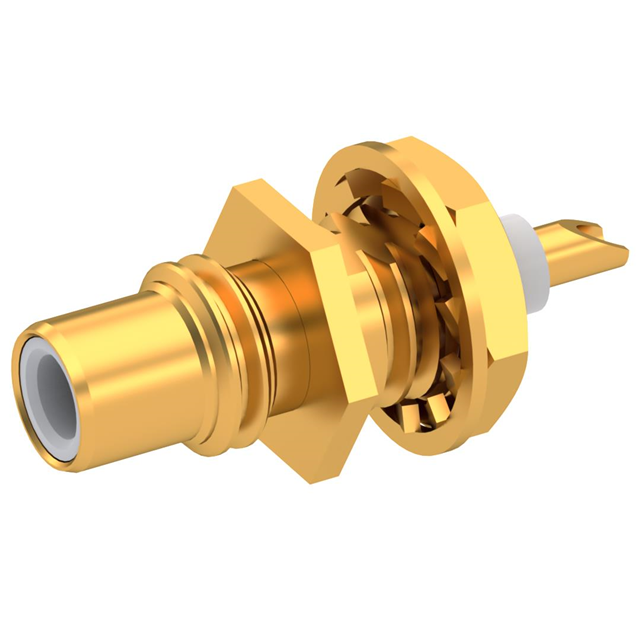

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 1 Connector 1 Lockwasher 1 Nut | Gold | 500 | 0.25 dB | 335 V | Gold | Bulkhead - Front Side Nut | Gold | Extended Insulation | Threaded | Panel Mount | 50 Ohms | SMC | 10 GHz | Solder Cup | Solder | Brass | Jack Male Pin | 1 |

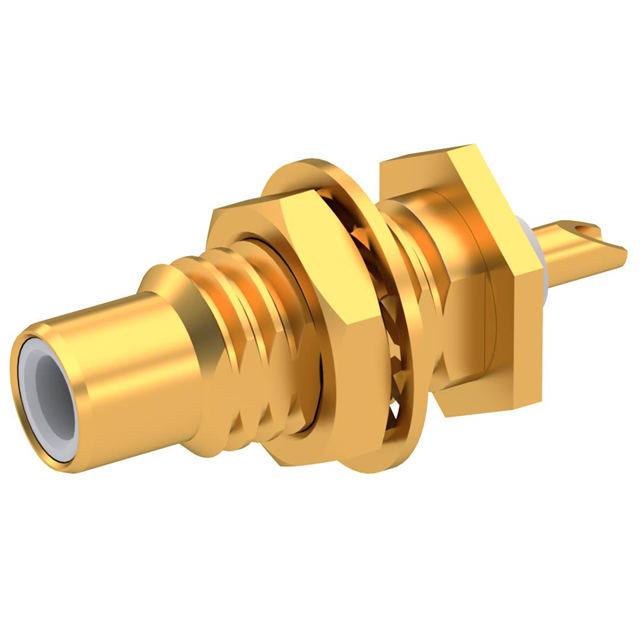

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 500 | 0.25 dB | Gold | Bulkhead - Rear Side Nut | Gold | Extended Insulation | Threaded | Panel Mount | 50 Ohms | SMC | 10 GHz | Solder Cup | Solder | Brass | Receptacle Male Pin | 1 |
