74007 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

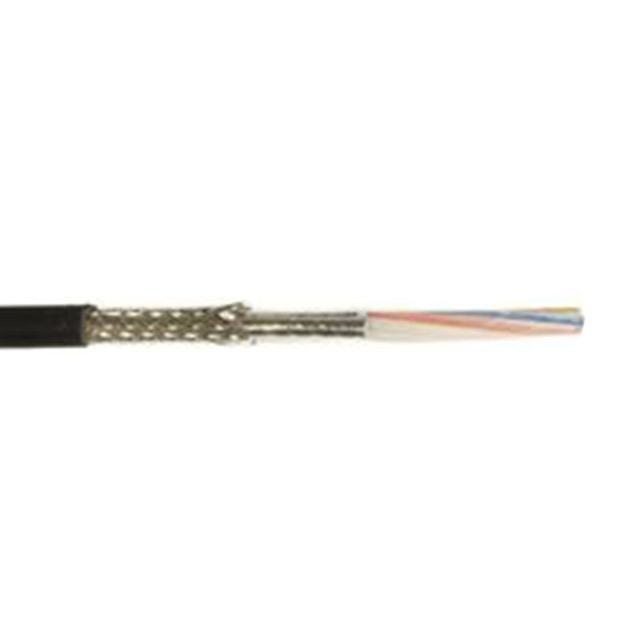

CABLE 4COND 22AWG BLK SHLD 10'
| Part | Jacket (Insulation) Material | Shield Type | Shield Material | Number of Conductors | Jacket Color | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Length | Length | Conductor Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand | Features | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Thermoplastic Polyurethane (TPU) | Braid Foil | Aluminum Copper Tinned | 4 | Black | Industrial Network | 90 °C | -40 °C | 300 V | 10 ft | 3.05 m 15.24 m | Copper Tinned | 80 % 100 % | 19 Strands | 34 AWG | Oil Resistant | 50 ft 100 ft 500 ' | 30.5 m 152.4 m | 0.889 mm | 0.035 in | 22 AWG | Polyolefin (PO) | 0.264 in | 6.71 mm | Multi-Conductor |
