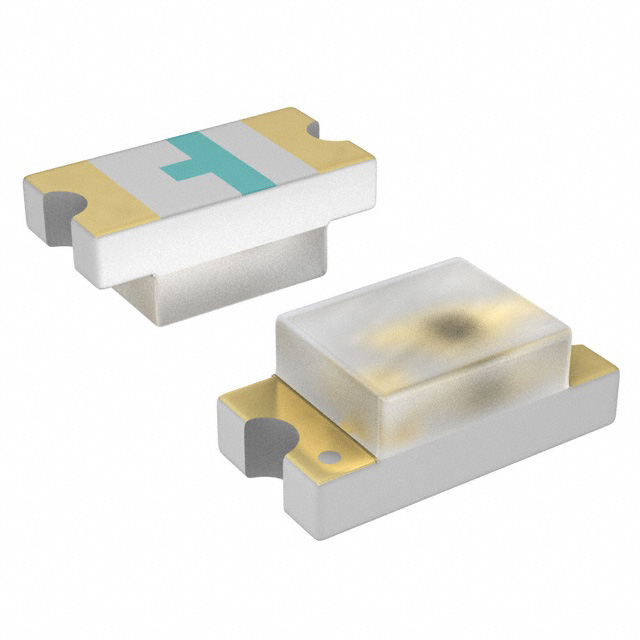

SML-LXFM0603 Series

Catalog

LED RED CLEAR 0603 SMD

Part	Supplier Device Package	Lens Style	Viewing Angle	Configuration	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Millicandela Rating	Lens Size [y]	Lens Size [x]	Lens Color	Height (Max) [z]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Wavelength - Peak
Lumex Opto/Components Inc. SML-LXFM0603SIC-TR	0603 (1608 Metric)	Rectangle with Flat Top	120 °	Standard	Surface Mount	Red	2 V	Clear	150 mcd	0.8 mm	1.1 mm	Colorless	1.1 mm	20 mA	1.6 mm	0.8 mm	1608 Metric	0603	636 nm
Lumex Opto/Components Inc. SML-LXFM0603USBCTR		Rectangle with Flat Top	120 °	Standard	Surface Mount	Blue	3.5 V	Clear	30 mcd	0.8 mm	1.1 mm	Colorless	1.1 mm	20 mA	1.6 mm	0.8 mm	1608 Metric	0603	470 nm
Lumex Opto/Components Inc. SML-LXFM0603SOC-TR		Rectangle with Flat Top	120 °	Standard	Surface Mount		2 V	Clear	200 mcd	0.8 mm	1.1 mm	Colorless	1.1 mm	20 mA	1.6 mm	0.8 mm	1608 Metric	0603	610 nm
Lumex Opto/Components Inc. SML-LXFM0603SRC-TR		Rectangle with Flat Top	120 °	Standard	Surface Mount	Red	1.7 V	Clear	100 mcd	0.8 mm	1.1 mm	Colorless	1.1 mm	20 mA	1.6 mm	0.8 mm	1608 Metric	0603	660 nm
Lumex Opto/Components Inc. SML-LXFM0603SUGCTR		Rectangle with Flat Top	120 °	Independent	Surface Mount	Green	2.1 V 2.2 V	Clear	50 mcd 60 mcd	0.8 mm	1.2 mm	Colorless Green	1.1 mm	20 mA	1.6 mm	0.8 mm	1608 Metric	0603
Lumex Opto/Components Inc. SML-LXFM0603SYC-TR		Rectangle with Flat Top	120 °	Standard	Surface Mount	Yellow	2 V	Clear	80 mcd	0.8 mm	1.1 mm	Colorless	1.1 mm	20 mA	1.6 mm	0.8 mm	1608 Metric	0603	590 nm
