TMUX2889 Series

+/- 5-V beyond the supply, 2:1 (SPDT) 2-channel switch with 1.8V compatible logic

Catalog

+/- 5-V beyond the supply, 2:1 (SPDT) 2-channel switch with 1.8V compatible logic

Part	Multiplexer/Demultiplexer Circuit	Charge Injection	-3db Bandwidth	Package / Case	Channel-to-Channel Matching (ΔRon)	Mounting Type	Number of Circuits	Supplier Device Package	Crosstalk	On-State Resistance (Max) [Max]	Switch Circuit	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Time (Ton, Toff) (Max)	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max)

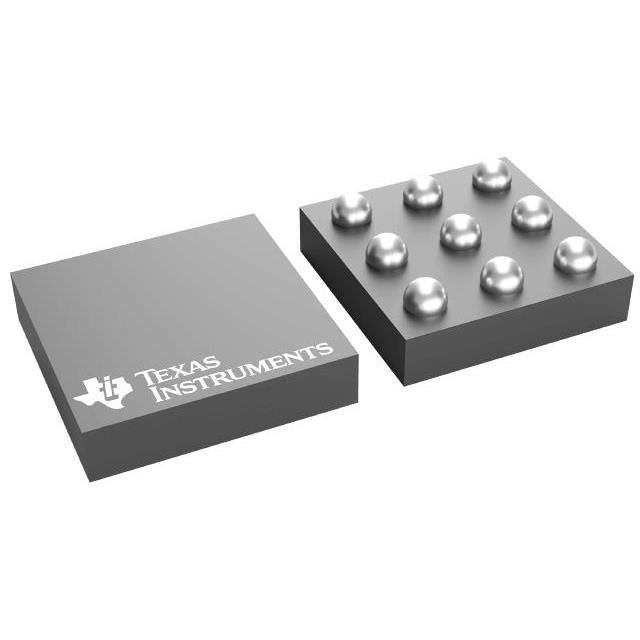

Texas Instruments TMUX2889YBHR	2:1	5 pC	72 MHz	9-BGA DSBGA	2 mOhm	Surface Mount	2	9-DSBGA (1.6x1.6)	-100 dB	160 mOhm	SPDT - Open/Closed	1.8 V	5.5 V	70 pF	70 pF	-40 °C	125 °C	-	175 µs	20 nA

Catalog

+/- 5-V beyond the supply, 2:1 (SPDT) 2-channel switch with 1.8V compatible logic

Key Features

• Supply range: 1.8V to 5.5VBeyond the supply signal range:-5.5V to 5.5VHigh current support: >1A (maximum)Ultra-low on-resistance: 0.2ΩLow on-resistance flatness: 1mΩLow THD+N: 0.001% (-100dB)–40°C to +125°C operating temperaturePowered off protectionOver temperature protection1.8V logic compatibleFail-safe logicBreak-before-make switchingSupply range: 1.8V to 5.5VBeyond the supply signal range:-5.5V to 5.5VHigh current support: >1A (maximum)Ultra-low on-resistance: 0.2ΩLow on-resistance flatness: 1mΩLow THD+N: 0.001% (-100dB)–40°C to +125°C operating temperaturePowered off protectionOver temperature protection1.8V logic compatibleFail-safe logicBreak-before-make switching

Description

The TMUX2889 is a complementary metal-oxide semiconductor (CMOS) multiplexer with two independently selectable 2:1, single-pole, double-throw (SPDT) switch channels. This device works with a single supply (1.6V to 5.5V), but can pass bidirectional analog and digital signals beyond the supply from -5.5V to 5.5V. The TMUX2889 also features powered off protection up to ±5.5V, which isolates the switch even when there is no supply voltage present (VDD = 0V). Without this protection feature, any voltage on the switch can back-power the supply rail through an internal ESD diode and cause potential damage to the rest of the system. With 0.001% THD+N and 1mΩ RON-flatness, the TMUX2889 is designed for passing precision analog and audio signals without adding distortion. The TMUX2889 is a complementary metal-oxide semiconductor (CMOS) multiplexer with two independently selectable 2:1, single-pole, double-throw (SPDT) switch channels. This device works with a single supply (1.6V to 5.5V), but can pass bidirectional analog and digital signals beyond the supply from -5.5V to 5.5V. The TMUX2889 also features powered off protection up to ±5.5V, which isolates the switch even when there is no supply voltage present (VDD = 0V). Without this protection feature, any voltage on the switch can back-power the supply rail through an internal ESD diode and cause potential damage to the rest of the system. With 0.001% THD+N and 1mΩ RON-flatness, the TMUX2889 is designed for passing precision analog and audio signals without adding distortion.
