LWS-9 Series

Catalog

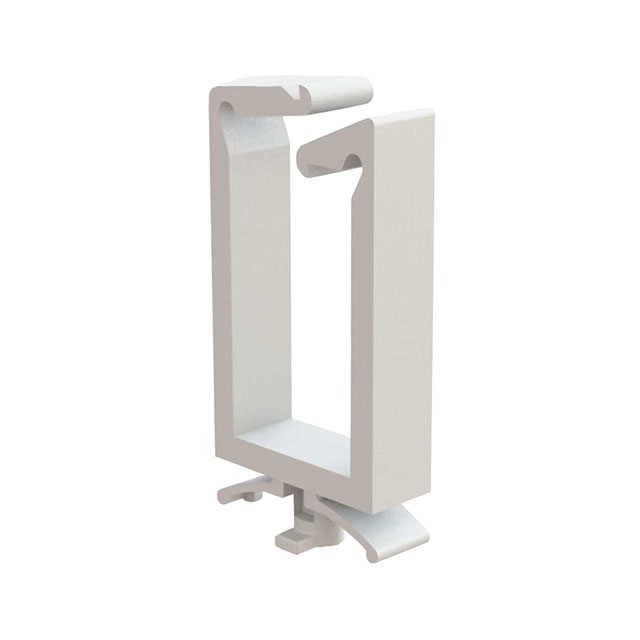

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.3 MM, 5.6 MM

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Material Flammability Rating	Height [z]	Height [z]	Type Attributes	Length	Length	Type	Mounting Type	Panel Hole Size [x]	Panel Hole Size	Panel Hole Size [y]	Panel Hole Size [y]	Panel Hole Size [x]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Color	Material	Features	Opening Size [z]	Opening Size [z]
Essentra Components LWS-9-4-01	1.6 mm	0.031 "	0.063 "	0.79 mm	UL94 V-2	35.05 mm	1.38 in	Hinged Locking	0.6 in	15.24 mm	Clip Wire Saddle	1/4 Turn Push In Winged	2.79 mm	Rectangular	7.11 mm	0.28 in	0.11 in	1.06 in	0.444 in	11.3 mm	26.92 mm	Natural	Polyamide (PA66) Nylon 6/6	Anti-Rotation Pin
Essentra Components LWS-9-3-01	1.6 mm	0.031 "	0.063 "	0.79 mm	UL94 V-2	27.18 mm	1.07 in	Hinged Locking	0.6 in	15.24 mm	Clip Wire Saddle	1/4 Turn Push In Winged	2.79 mm	Rectangular	7.11 mm	0.28 in	0.11 in		0.444 in	11.3 mm		Natural	Polyamide (PA66) Nylon 6/6	Anti-Rotation Pin	0.75 "	19.05 mm
