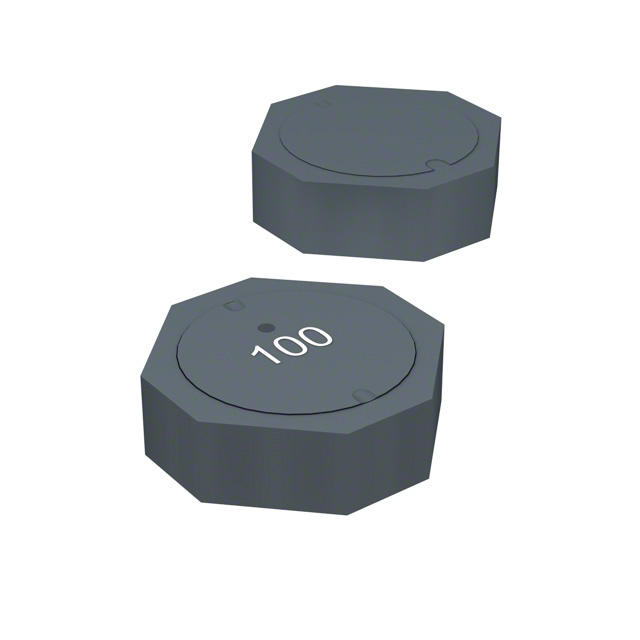

SRU5016 Series

Catalog

POWER INDUCTOR (SMD), 10 ΜH, 1 A, SHIELDED, 900 MA, SRU5016 SERIES

Part	Material - Core	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Q @ Freq	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	Frequency - Self Resonant	Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Tolerance	Current - Saturation (Isat)
Bourns Inc. SRU5016-100Y	Ferrite	Shielded	125 °C	-40 C	Surface Mount	1 A	2.52 MHz 15	84 mOhm	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	40 MHz	Drum Core Wirewound	Nonstandard	1.8 mm	0.071 in	10 µH	30 %	900 mA
Bourns Inc. SRU5016-6R8Y	Ferrite	Shielded	125 °C	-40 C	Surface Mount	1.2 A	7.96 MHz 8	50 mOhm	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	50 MHz	Drum Core Wirewound	Nonstandard	1.8 mm	0.071 in	6.8 µH	30 %	1.1 A
Bourns Inc. SRU5016-1R0Y	Ferrite	Shielded	125 °C	-40 C	Surface Mount				5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz		Drum Core Wirewound	Nonstandard	1.8 mm	0.071 in	1 µH	30 %
Bourns Inc. SRU5016-680Y	Ferrite	Shielded	125 °C	-40 C	Surface Mount	360 mA	2.52 MHz 18	560 mOhm	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	15 MHz	Drum Core Wirewound	Nonstandard	1.8 mm	0.071 in	68 µH	30 %	330 mA
Bourns Inc. SRU5016-220Y	Ferrite	Shielded	125 °C	-40 C	Surface Mount	650 mA	2.52 MHz 15	195 mOhm	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	28 MHz	Drum Core Wirewound	Nonstandard	1.8 mm	0.071 in	22 µH	30 %	0.56 A
Bourns Inc. SRU5016-470Y	Ferrite	Shielded	125 °C	-40 C	Surface Mount	460 mA	2.52 MHz 18	390 mOhm	5.2 mm	0.205 "	0.205 "	5.2 mm	100 kHz	18 MHz	Drum Core Wirewound	Nonstandard	1.8 mm	0.071 in	47 µH	30 %	420 mA
