RLCBSPR Series

Catalog

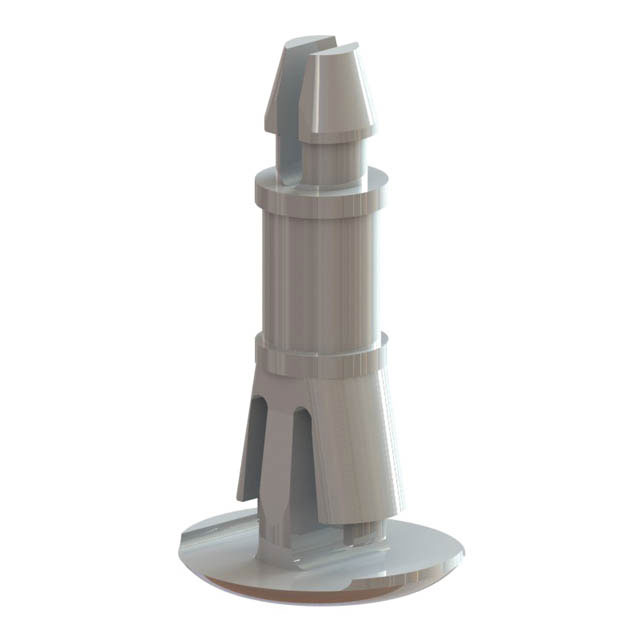

BRD SPT SNAP LOCK NYLON 5/16"

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Features	Mounting Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Holding Type	Between Board Height	Between Board Height	Between Board Height	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Length - Overall	Length - Overall
Essentra Components RLCBSPR-5-01	1.57 mm	0.062 in	0.0625 in	0.622 "	15.8 mm	0.1875 in	0.187 in	4.75 mm	Nylon	Locking Reverse Mounting	Snap Lock	0.125 in	0.125 in	3.18 mm	Snap Lock	0.313 in	0.3125 in	7.95 mm	1.6 mm	0.063 in	0.059 "	1.5 mm
Essentra Components RLCBSPR-7-01	1.57 mm	0.062 in	0.0625 in			0.1875 in	0.187 in	4.75 mm	Nylon	Locking Reverse Mounting	Snap Lock	0.125 in	0.125 in	3.18 mm	Snap Lock	0.438 in	0.4375 "	11.13 mm	1.6 mm	0.063 in	0.059 "	1.5 mm	0.748 in	19 mm
Essentra Components RLCBSPR-6-01	1.57 mm	0.062 in	0.0625 in			0.1875 in	0.187 in	4.75 mm	Nylon	Locking Reverse Mounting	Snap Lock	0.125 in	0.125 in	3.18 mm	Snap Lock	0.375 in	0.375 "	9.53 mm	1.6 mm	0.063 in	0.059 "	1.5 mm
