RFN-1005 Series
Manufacturer: RF Industries
Beta
⌘K

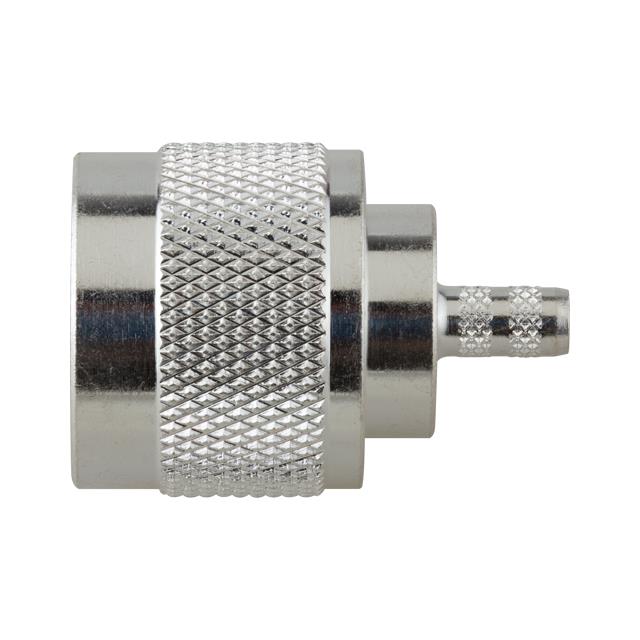

N MALE CRIMP; 50 OHMS
| Part | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Body Material | Number of Ports | Contact Termination | Cable Group | Frequency - Max [Max] | Mounting Type | Connector Type | Center Contact Material | Impedance | Housing Color | Fastening Type | Shield Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Polytetrafluoroethylene (PTFE) | 1000 VDC | -65 ░C | 85 °C | Gold | Silver | Brass | 1 | Crimp | Alpha 9848 LMR-200 MSI-22 | 11 GHz | Free Hanging (In-Line) | Plug Male Pin | Brass | 50 Ohms | Silver | Threaded | Crimp | N Type |
