171070 Series
Manufacturer: Molex
Beta
⌘K

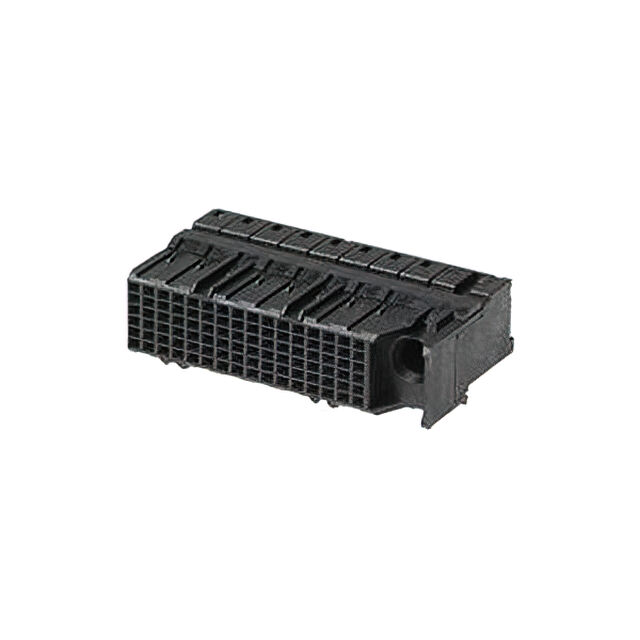

IMPACT 85 OHM PLUS 2 PAIR RIGHT-ANGLE DAUGHTERCARD, RIGHT GUIDED, 16 COLUMNS, 96 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD FREE
| Part | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Layout, Typical | Color | Contact Finish | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Termination | Features | Number of Columns | Number of Positions | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 32 | Black | Gold | All | 30 Áin | 0.76 Ám | Board Edge Right Angle Through Hole | 6 | Press-Fit | Board Guide | 16 | 96 | Receptacle Female Sockets | |
 Molex | UL94 V-0 | -55 C | 85 °C | 30 VDC | 20 | Black | Gold | All | 30 Áin | 0.76 Ám | Board Edge Right Angle Through Hole | 6 | Press-Fit | Board Guide | 10 | 60 | Receptacle Female Sockets | |
 Molex | 20 | Black | Gold | All | 30 Áin | 0.76 Ám | Board Edge Right Angle Through Hole | 6 | Press-Fit | 10 | 60 | Receptacle Female Sockets | Impact Guide Left |
