45123 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

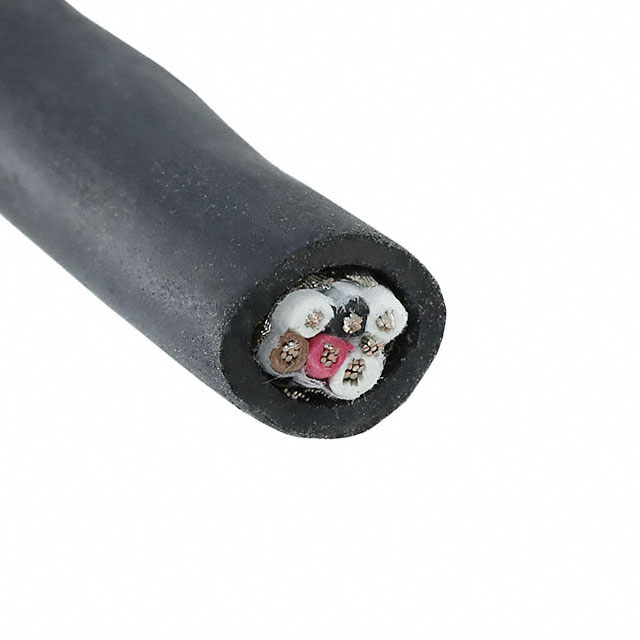

MULTI-PAIR 6COND 22AWG BLK 100'
| Part | Features | Length [x] | Length [x] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Wire Gauge | Conductor Insulation | Conductor Material | Shield Coverage | Cable Type | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Spool Size | Spool Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Biological Compatibility Drain Wire Rip Cord | 30.5 m | 100 ft | 6 | -50 °C | 125 °C | Black | 22 AWG | Thermoplastic Elastomer (TPE) | Copper Tinned | 70 % 100 % | Multi-Pair | Copper Tinned Suprashield® | 1.143 mm | 0.045 in | ISO 10993 | 300 V | 7 | 30 AWG | Thermoplastic Elastomer (TPE) | Braid Foil | 0.341 in | 8.66 mm | |||
ALPHA WIRE | Biological Compatibility Drain Wire Rip Cord | 6 | -50 °C | 125 °C | Black | 22 AWG | Thermoplastic Elastomer (TPE) | Copper Tinned | 70 % 100 % | Multi-Pair | Copper Tinned Suprashield® | 1.143 mm | 0.045 in | ISO 10993 | 300 V | 7 | 30 AWG | Thermoplastic Elastomer (TPE) | Braid Foil | 0.341 in | 8.66 mm | Enter Number of Feet in Order Quantity | 1000 ft | 304.8 m |
