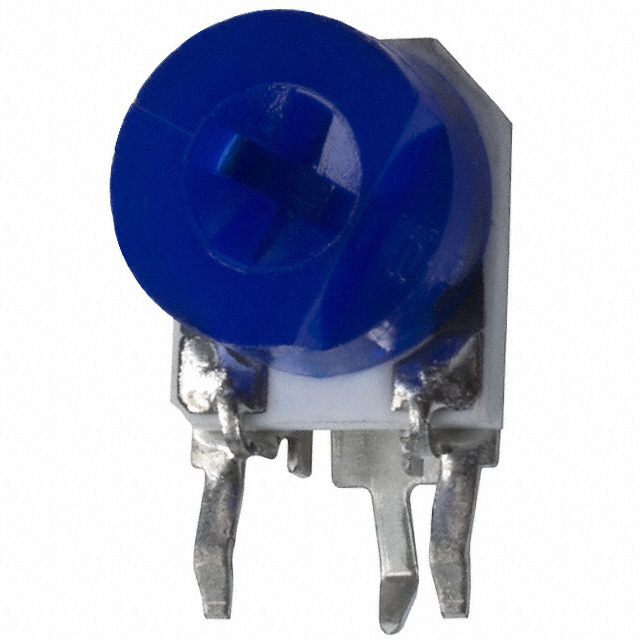

3306K Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES CERMET TRIMMER 100K OHM 25% 0.2W(1/5W) 1(ELEC)/1(MECH)TURNS 3.4MM (6.81 X 8.4MM) PIN THRU-HOLE BAG
| Part | Resistance | Tolerance | Mounting Type | Adjustment Type | Termination Style | Number of Turns | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Resistive Material | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kOhms | 25 % | Through Hole | Side Adjustment | PC Pins | 1 | 0.2 W | 0.2 W | 8.1 mm | 0.319 " | 6.81 mm | 0.268 in | Cermet | 250 ppm/°C |
Bourns Inc. | 0.5 kOhms | 25 % | Through Hole | Side Adjustment | PC Pins | 1 | 0.2 W | 0.2 W | 8.1 mm | 0.319 " | 6.81 mm | 0.268 in | Cermet | 250 ppm/°C |
Bourns Inc. | 25 % | Through Hole | Side Adjustment | PC Pins | 1 | 0.2 W | 0.2 W | 8.1 mm | 0.319 " | 6.81 mm | 0.268 in | Cermet | 250 ppm/°C | |
Bourns Inc. | 1 MOhms | 25 % | Through Hole | Side Adjustment | PC Pins | 1 | 0.2 W | 0.2 W | 8.1 mm | 0.319 " | 6.81 mm | 0.268 in | Cermet | 250 ppm/°C |
Bourns Inc. | 2 kOhms | 25 % | Through Hole | Side Adjustment | PC Pins | 1 | 0.2 W | 0.2 W | 8.1 mm | 0.319 " | 6.81 mm | 0.268 in | Cermet | 250 ppm/°C |
Bourns Inc. | 10000 Ohms | 25 % | Through Hole | Side Adjustment | PC Pins | 1 | 0.2 W | 0.2 W | 8.1 mm | 0.319 " | 6.81 mm | 0.268 in | Cermet | 250 ppm/°C |
