PV14 Series

Terminals VYL-RING 8 RED 3/8

Manufacturer: Panduit Corp

Catalog

Terminals VYL-RING 8 RED 3/8

Catalog

Terminals VYL-RING 8 RED 3/8

Part	Material - Insulation	Color	Mounting Type	Thickness	Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Termination	Width - Outer Edges	Width - Outer Edges	Terminal Type	Stud/Tab Size	Features	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Tongue Inside Opening	Tongue Inside Opening	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [y]	Width - Outer Edges [y]

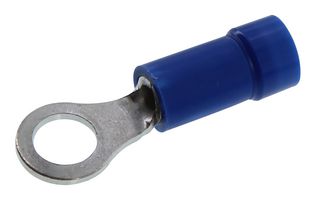

Panduit Corp PV14-10R-M	Vinyl	Blue	Free Hanging (In-Line)	0.81 mm	0.032 in	14 AWG	16 AWG	Tin	23.37 mm	0.92 in	Copper	Insulated	Crimp	7.87 mm	0.31 in	Circular	10 Stud	Brazed Seam
Panduit Corp PV14-10RX-C	Vinyl	Blue	Free Hanging (In-Line)	0.81 mm	0.032 in	14 AWG	16 AWG	Tin	24.38 mm	0.96 in	Copper	Insulated	Crimp	7.87 mm	0.31 in	Circular	10 Stud	Brazed Seam Serrated Termination	5.08 mm	0.2 "
Panduit Corp PV14-6RX-M	Vinyl	Blue	Free Hanging (In-Line)	0.81 mm	0.032 in	14 AWG	16 AWG	Tin	24.38 mm	0.96 in	Copper	Insulated	Crimp	7.87 mm	0.31 in	Circular	6 Stud	Brazed Seam Serrated Termination	5.08 mm	0.2 "
Panduit Corp PV14-6FB-3K		Blue	Free Hanging (In-Line)			14 AWG	16 AWG	Tin	19.81 mm	0.78 in	Copper	Insulated	Crimp			Standard	6 Stud	Butted Seam			7.11 mm	0.28 in
Panduit Corp PV14-4R-M	Vinyl	Blue	Free Hanging (In-Line)	0.81 mm	0.032 in	14 AWG	16 AWG	Tin	21.34 mm	0.84 in	Copper	Insulated	Crimp			Circular	4 Stud	Brazed Seam			6.35 mm		0.25 "
Panduit Corp PV14-6FNB-3K	Vinyl	Blue	Free Hanging (In-Line)			14 AWG	16 AWG	Tin	19.81 mm	0.78 in	Copper	Insulated	Crimp			Standard	6 Stud	Butted Seam			6.1 mm		0.24 in	3.81 mm	0.15 in

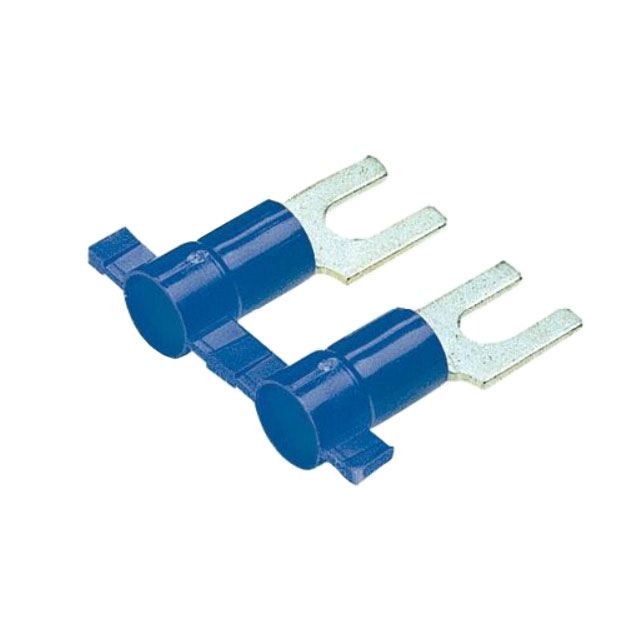

Panduit Corp PV14-10FB-3K	Vinyl	Blue	Free Hanging (In-Line)			14 AWG	16 AWG	Tin	21.84 mm	0.86 "	Copper	Insulated	Crimp			Standard	10 Stud	Butted Seam								0.2 in	5.08 mm	0.34 in	8.64 mm

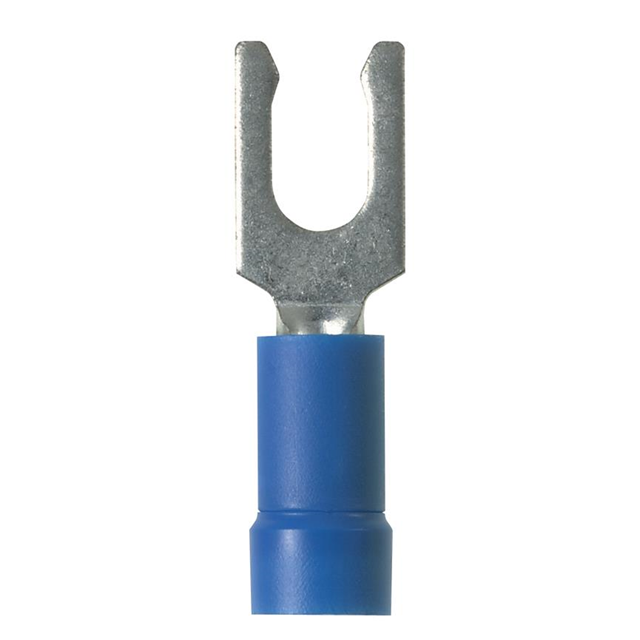

Panduit Corp PV14-6LFW-M	Vinyl	Blue	Free Hanging (In-Line)			14 AWG	16 AWG	Tin	22.86 mm	0.9 "	Copper	Insulated	Crimp			Snap Spring	6 Stud	Brazed Seam Serrated Termination			7.37 mm		0.29 in	3.56 mm		0.14 in
Panduit Corp PV14-6FN-C	Vinyl	Blue	Free Hanging (In-Line)			14 AWG	16 AWG	Tin	21.34 mm	0.84 in	Copper	Insulated	Crimp			Standard	6 Stud	Brazed Seam			6.1 mm		0.24 in	3.81 mm	0.15 in

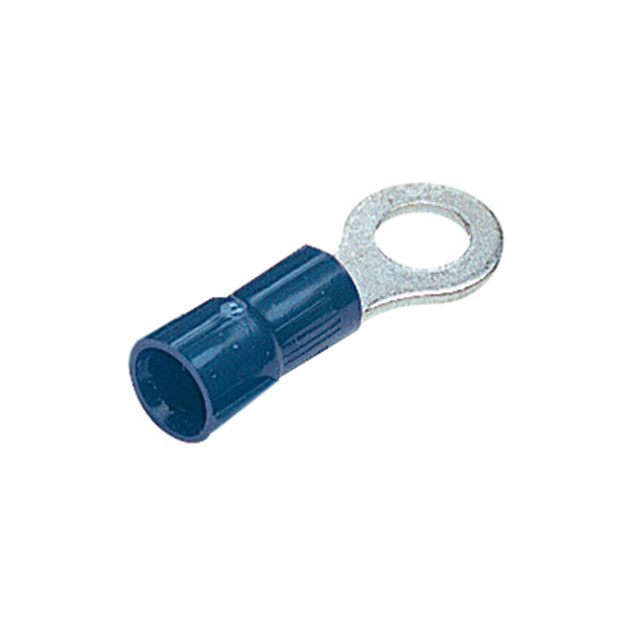

Panduit Corp PV14-38RB-2K	Vinyl	Blue	Free Hanging (In-Line)	0.79 mm	0.031 in	14 AWG	16 AWG	Tin	29.21 mm	1.15 in	Copper	Insulated	Crimp	13.46 mm	0.53 in	Circular	0.375 Stud
