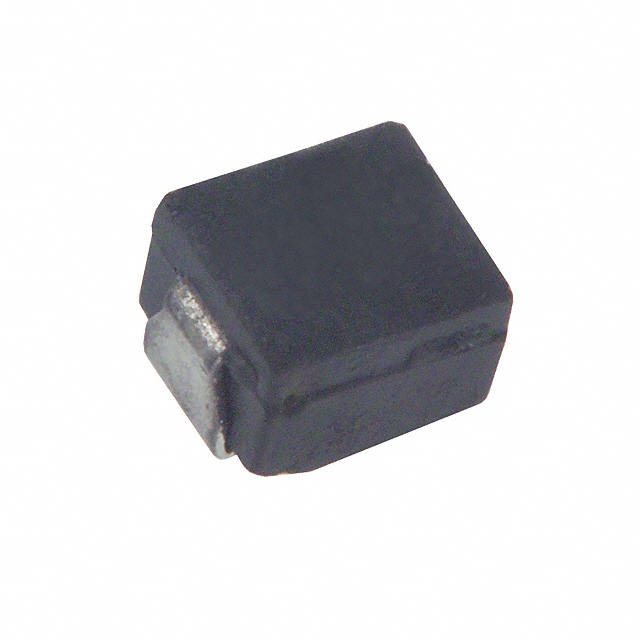

ELJ-FCR Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 330NH 170MA 850MOHM SM

Part	Shielding	Tolerance	Q @ Freq	Supplier Device Package	Supplier Device Package	Package / Case	Current Rating (Amps)	Inductance	Mounting Type	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Type	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Panasonic Industrial Automation Sales ELJ-FCR33KF	Unshielded	10 %	25 25.2 MHz	2520	1008	1008	0.17 A	330 nH	Surface Mount	850 mOhm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	190 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR39MF	Unshielded	20 %	25 25.2 MHz	2520	1008	1008	160 mA	390 nH	Surface Mount	950 mOhm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	175 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR22KF	Unshielded	10 %	25 25.2 MHz	2520	1008	1008		220 nH	Surface Mount	700 mOhm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	230 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR68KF	Unshielded	10 %	25 25.2 MHz	2520	1008	1008	140 mA	0.68 µH	Surface Mount	1.25 Ohm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	135 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR82JF	Unshielded	5 %	25 25.2 MHz	2520	1008	1008	130 mA	820 nH	Surface Mount	1.4 Ohm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	125 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR68MF	Unshielded	20 %	25 25.2 MHz	2520	1008	1008	140 mA	0.68 µH	Surface Mount	1.25 Ohm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	135 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR82KF	Unshielded	10 %	25 25.2 MHz	2520	1008	1008	130 mA	820 nH	Surface Mount	1.4 Ohm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	125 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR39KF	Unshielded	10 %	25 25.2 MHz	2520	1008	1008	160 mA	390 nH	Surface Mount	950 mOhm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	175 MHz	0.098 "	2 mm	2.5 mm	0.079 in
Panasonic Industrial Automation Sales ELJ-FCR22MF	Unshielded	20 %	25 25.2 MHz	2520	1008	1008		220 nH	Surface Mount	700 mOhm	85 °C	-20 C	0.071 "	1.8 mm	25.2 MHz	Wirewound	230 MHz	0.098 "	2 mm	2.5 mm	0.079 in
