GSM18U09 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

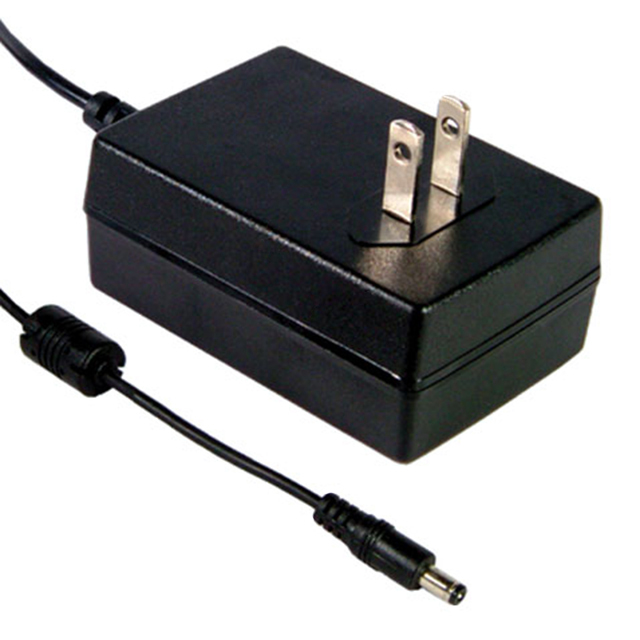

AC/DC WALL MOUNT ADAPTER 9V 18W
| Part | Efficiency | Input Type | Polarization | Current - Output (Max) [Max] | No Load Power Consumption | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Region Utilized | Voltage - Output | Input Connector | Approval Agency | Cord Length | Cord Length | Output Connector [x] | Output Connector [diameter] | Output Connector | Form | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Level V | Fixed Blade | Positive Center | 2 A | 100 mW | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | North America | 9 V | NEMA 1-15P | CB cRUus TUV | 1.2 m | 47.2 in | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Wall Mount | -25 °C | 60 °C | 80 VAC | 264 VAC | 18 W | Medical |
