HDx Series

Catalog

CIRCULAR PUSH PULL CONNECTORS 0-12 CLOCKING A LOCKING PLUG

Part	Orientation	Color	Contact Material	Ingress Protection	Shell Material	Cable Opening	Cable Opening	Insert Material	Number of Positions	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Primary Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Finish	Shielding	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Features	Contact Finish - Mating	Voltage Rating	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]	Mounting Feature	Termination
ITT Cannon, LLC HDX-WC1M0-12XMA	A	Silver	Copper Alloy	IPX8 IPX9K	Brass	0.256 in	6.5 mm	Polyetherimide (PEI) Glass Filled	12	Electroless Nickel	Brass	Metal	12	0	Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Plug Male Pins	Backshell	Gold	250 V
ITT Cannon, LLC HDX-WA1M0-09XMB	B	Silver	Copper Alloy	IPX8 IPX9K	Brass	0.276 in	7 mm	Polyetherimide (PEI) Glass Filled		Electroless Nickel	Brass	Metal			Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Plug Male Pins	Backshell	Gold	250 V	0-09	3	6
ITT Cannon, LLC HDX-WA1M0-16XBA	A	Silver	Copper Alloy	IPX8 IPX9K	Brass	0.276 in	7 mm	Polyetherimide (PEI) Glass Filled	16	Electroless Nickel	Brass	Metal	16	0	Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Plug Male Pins	Backshell	Gold	250 V
ITT Cannon, LLC HDX-WC1M0-09XMC	C	Silver	Copper Alloy	IPX8 IPX9K	Brass	0.256 in	6.5 mm	Polyetherimide (PEI) Glass Filled		Electroless Nickel	Brass	Metal			Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Plug Male Pins	Backshell	Gold	250 V	0-09	3	6
ITT Cannon, LLC HDX-WK1M0-12WMB	B	Silver		IPX8 IPX9K	Brass	0.276 in	7 mm		12			Metal	12	0	Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Receptacle Female Sockets		Gold

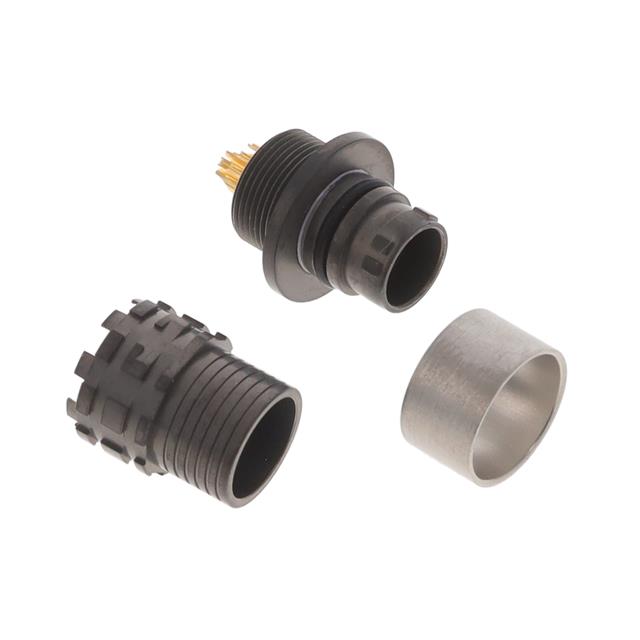

ITT Cannon, LLC HDX-WA1M0-12XMA	A	Silver	Copper Alloy	IPX8 IPX9K	Brass	0.276 in	7 mm	Polyetherimide (PEI) Glass Filled	12	Electroless Nickel	Brass	Metal	12	0	Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Plug Male Pins	Backshell	Gold	250 V
ITT Cannon, LLC HDX-WGKM0-16UBAL	A	Silver		IPX8 IPX9K	Brass				16			Metal	16	0	Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Panel Mount Through Hole	Receptacle Female Sockets		Gold	250 V				Bulkhead - Front Side Nut	Solder
ITT Cannon, LLC HDX-WC1M0-16XBC	C	Silver	Copper Alloy	IPX8 IPX9K	Brass	0.256 in	6.5 mm	Polyetherimide (PEI) Glass Filled	16	Electroless Nickel	Brass	Metal	16	0	Ruthenium over Electroless Nickel	Unshielded	1 A 5 A	Push-Pull	-51 °C	125 °C	Free Hanging (In-Line)	Plug Male Pins	Backshell	Gold	250 V
