SS-6488 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

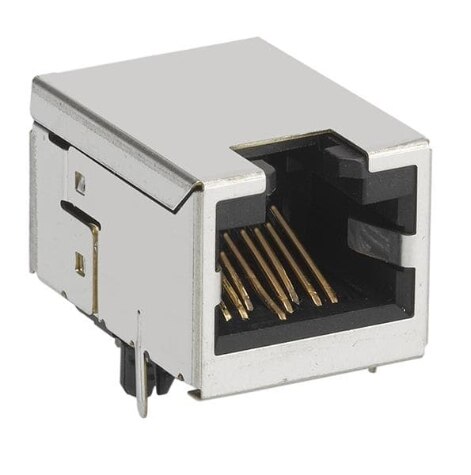

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Contact Finish | Number of Positions/Contacts | Mounting Type | Connector Type | Tab Direction | Orientation | LED Color | Termination | Shielding | Number of Rows | Contact Material | Features | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Gold | 8p8c (RJ45 Ethernet) | Through Hole | Jack | Down | 90 ° | Does Not Contain LED | Solder | Shielded | 1 | Copper Alloy | Board Lock Keyed Panel Stops | 1 |
Bel Fuse Inc. | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Gold | 8p8c (RJ45 Ethernet) | Through Hole | Jack | Down | 90 ° | Does Not Contain LED | Solder | Shielded | 1 | Copper Alloy | Board Lock Shorting | 1 |

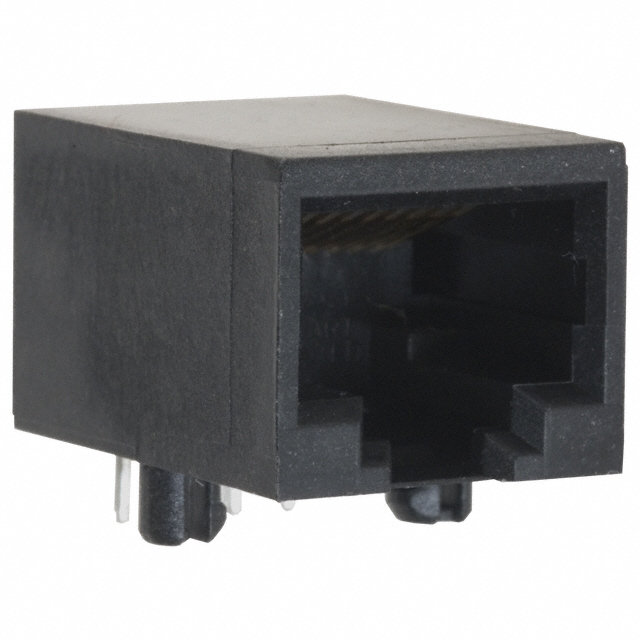

Bel Fuse Inc. | 85 °C | -40 C | 50 µin | 1.27 µm | Thermoplastic | Gold | 8p8c (RJ45 Ethernet) | Through Hole | Jack | Down | 90 ° | Does Not Contain LED | Solder | Unshielded | 1 | Copper Alloy | Board Lock | 1 |
 Bel Fuse Inc. | 85 °C | -40 C | 30 Áin | 0.76 Ám | Thermoplastic | Gold | 8p8c (RJ45 Ethernet) | Through Hole | Jack | Down | 90 ° | Does Not Contain LED | Solder | Unshielded | 1 | Copper Alloy | Board Lock | 1 |
 Bel Fuse Inc. | Gold | 8p8c (RJ45 Ethernet) | Through Hole | Jack | Down | 90 ° | Does Not Contain LED | Solder | Unshielded | 1 | Copper Alloy | Board Lock | 1 |
