045971 Series

Manufacturer: Molex

Catalog

CONN BOARD TO BOARD RCP 500 POS 1.27MM SOLDER ST TOP ENTRY SMD SEARAY T/R

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mated Stacking Heights	Features	Number of Rows	Connector Type	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]

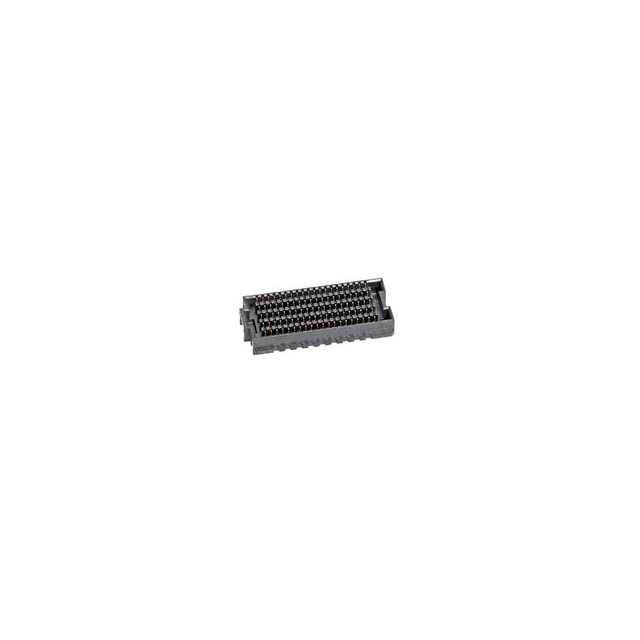

Molex 0459715515	Surface Mount	0.76 Ám	30 Áin	0.319 in	8.1 mm	10 mm 10.5 mm 11 mm 11.5 mm 12.5 mm 13 mm 15 mm	Board Guide	6	High Density Array Female	Gold	500	0.05 in	1.27 mm

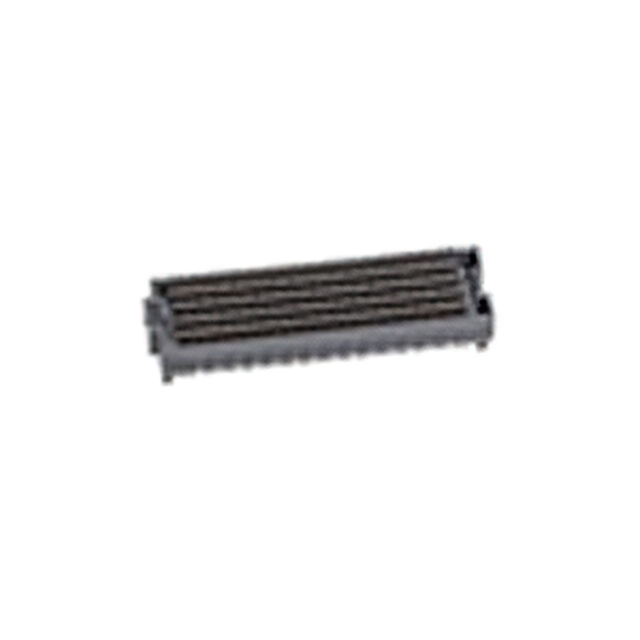

Molex 0459713315	Surface Mount	0.76 Ám	30 Áin	0.258 "	6.55 mm	8.5 mm 9 mm 9.5 mm 10 mm 11 mm 11.5 mm 13.5 mm	Board Guide	10	High Density Array Female	Gold	300	0.05 in	1.27 mm
Molex 0459713181	Surface Mount	0.76 Ám	30 Áin	0.199 in	5.05 mm	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	Board Guide	8	High Density Array Female	Gold	240	0.05 in	1.27 mm
Molex 0459713115	Surface Mount	0.76 Ám	30 Áin	0.199 in	5.05 mm	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	Board Guide	10	High Density Array Female	Gold	300	0.05 in	1.27 mm

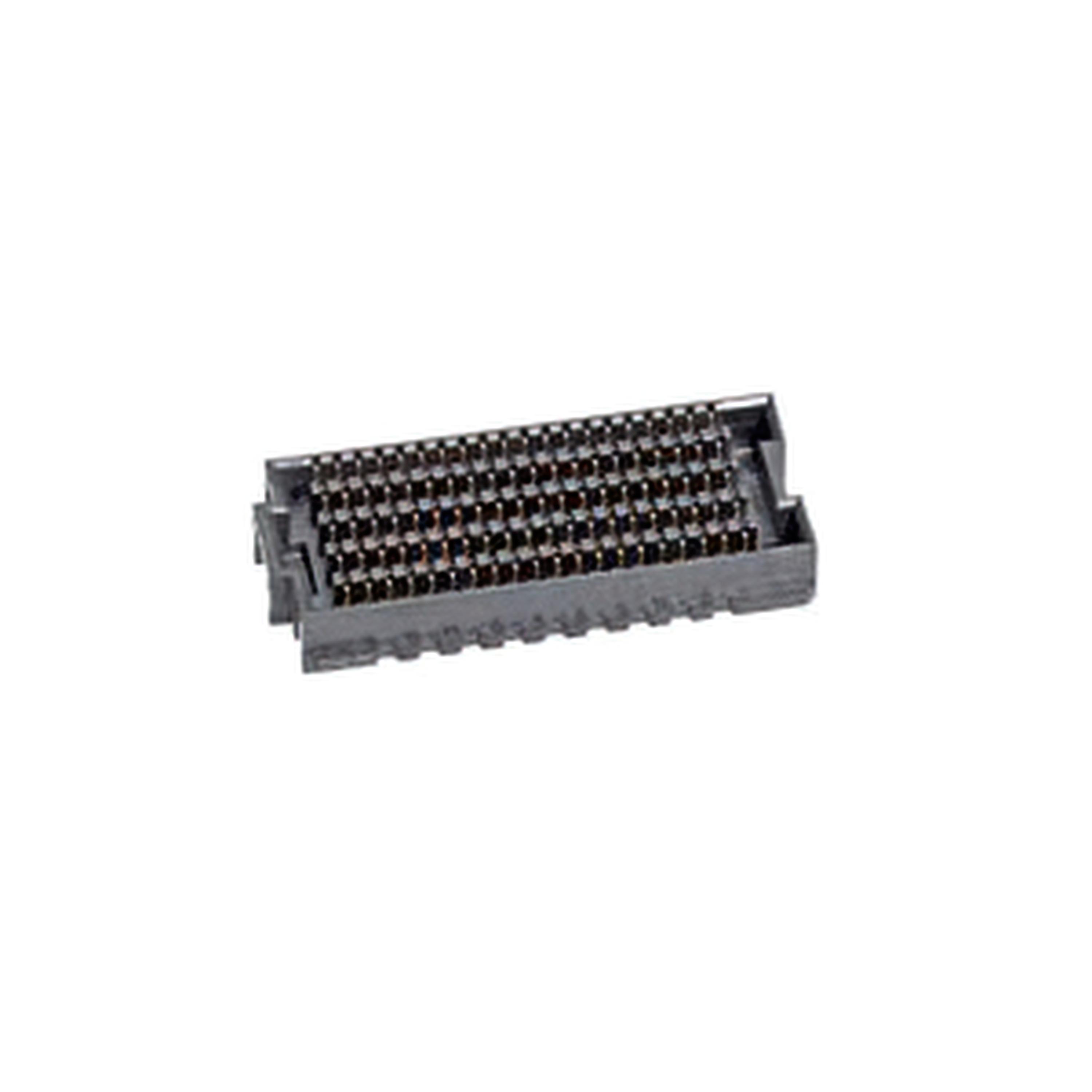

Molex 0459712385	Surface Mount	0.76 Ám	30 Áin	0.262 in	6.66 mm	8.5 mm 9 mm 9.5 mm 10 mm 11 mm 11.5 mm 13.5 mm	Board Guide Pick and Place	8	High Density Array Female	Gold	160	0.05 in	1.27 mm

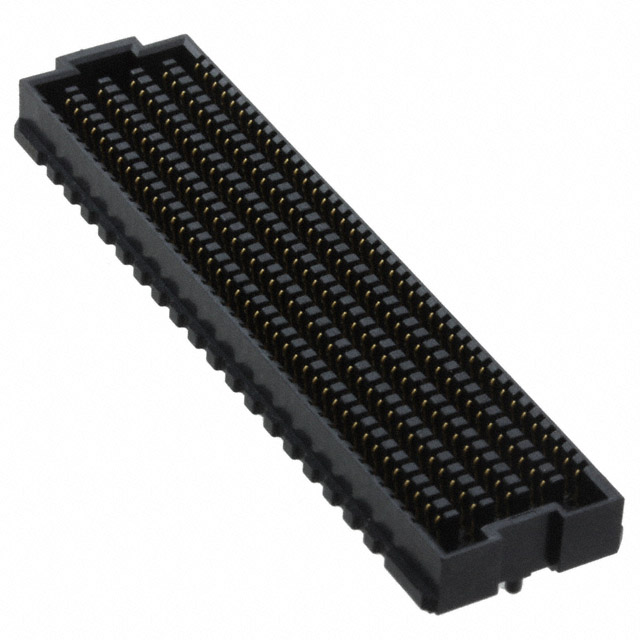

Molex 0459714115	Surface Mount	0.76 Ám	30 Áin	0.199 in	5.05 mm	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	Board Guide	10	High Density Array Female	Gold	400	0.05 in	1.27 mm

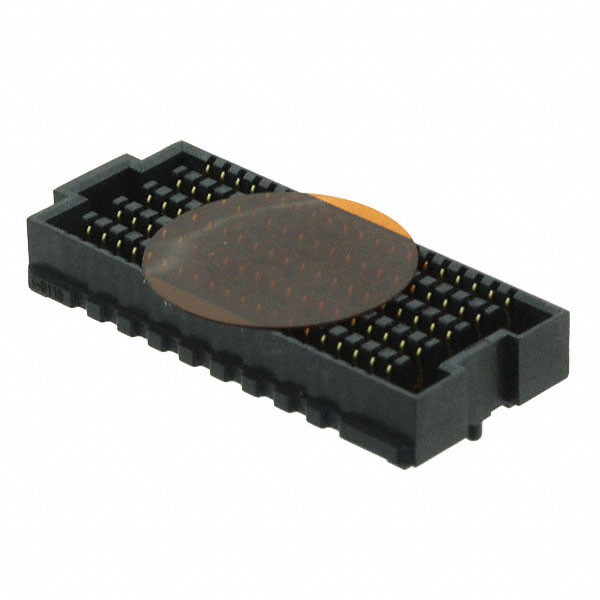

Molex 0459712115	Surface Mount	0.76 Ám	30 Áin	0.199 in	5.05 mm	7 mm 7.5 mm 8 mm 8.5 mm 9.5 mm 10 mm 12 mm	Board Guide	10	High Density Array Female	Gold		0.05 in	1.27 mm
Molex 0459713381	Surface Mount	0.76 Ám	30 Áin	0.258 "	6.55 mm	8.5 mm 9 mm 9.5 mm 10 mm 11 mm 11.5 mm 13.5 mm	Board Guide	8	High Density Array Female	Gold	240	0.05 in	1.27 mm
Molex 0459712315	Surface Mount	0.76 Ám	30 Áin	0.258 "	6.55 mm	8.5 mm 9 mm 9.5 mm 10 mm 11 mm 11.5 mm 13.5 mm	Board Guide Pick and Place	10	High Density Array Female	Gold		0.05 in	1.27 mm
Molex 0459714385	Surface Mount	0.76 Ám	30 Áin	0.26 "	6.6 mm	8.5 mm 9 mm 9.5 mm 10 mm 11 mm 11.5 mm 13.5 mm	Board Guide	6	High Density Array Female	Gold	320	0.05 in	1.27 mm
