MPXA41 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
SENSOR 15.23PSIA 0.13" 49V
| Part | Features | Pressure Type | Applications | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Pressure (Min) | Operating Pressure (Max) | Port Style | Package / Case | Termination Style | Port Diameter | Port Gender | Port Feature | Output Voltage (Max) | Output Voltage (Min) | Mounting Type | Maximum Pressure | Operating Temperature (Max) | Operating Temperature (Min) | Accuracy | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

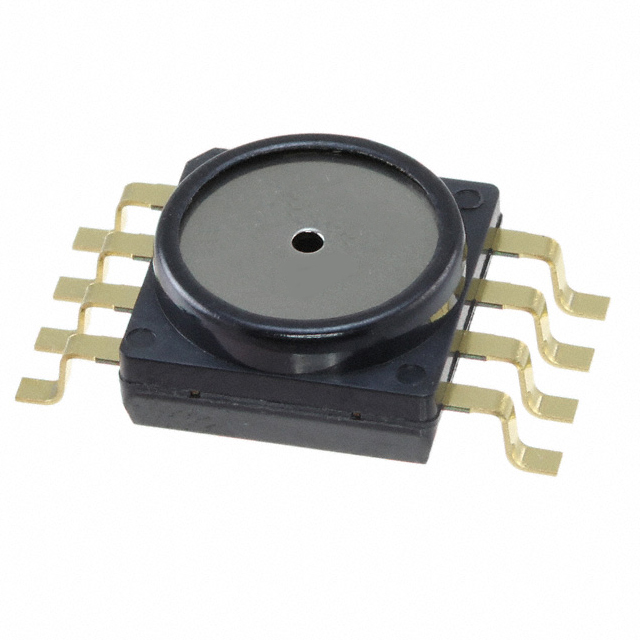

 NXP USA Inc. | Temperature Compensated | Absolute | Board Mount | 4.85 V | 5.35 V | 2.9 PSI | 15.23 PSI | Barbless | 8-SMD Gull Wing Top Port | Gull Wing | 0.13 " | Male | Tube | 49 V | 0.3 V | Surface Mount | 58.02 PSI | 125 °C | -40 °C | 1.8 % RH | Analog Voltage |
 NXP USA Inc. | Temperature Compensated | Absolute | Board Mount | 4.85 V | 5.35 V | 2.9 PSI | 15.23 PSI | No Port | 8-SMD Module | SMD (SMT) Tab | 49 V | 0.3 V | Surface Mount | 58.02 PSI | 125 °C | -40 °C | 1.8 % RH | Analog Voltage | |||
 NXP USA Inc. | Temperature Compensated | Absolute | Board Mount | 4.85 V | 5.35 V | 2.18 PSI | 16.68 PSI | No Port | 8-SMD Module | SMD (SMT) Tab | 4.8 V | 0.2 V | Surface Mount | 58.02 PSI | 125 °C | -40 °C | 1.5 % | Analog Voltage |
