PPL65W Series

Catalog

AC/DC DESKTOP ADAPTER 56V 66W

Part	Power (Watts)	Region Utilized	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	No Load Power Consumption	Form	Input Connector	Polarization	Output Connector [x]	Output Connector [diameter]	Output Connector	Cord Length	Cord Length	Standard Number	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Efficiency	Approval Agency	Current - Output (Max) [Max]	Input Type	Operating Temperature [Max]	Current - Output (Max)
Phihong USA PPL65W-560	66 W	International	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	150 mW	Desktop (Class II)	IEC 320-C8	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.5 m	59 in	62368-1	ITE (Commercial)	264 VAC	90 VAC	56 V	CoC Tier 2 Level VI	cULus IEC	1.17 A	Cord (Sold Separately)	40 °C

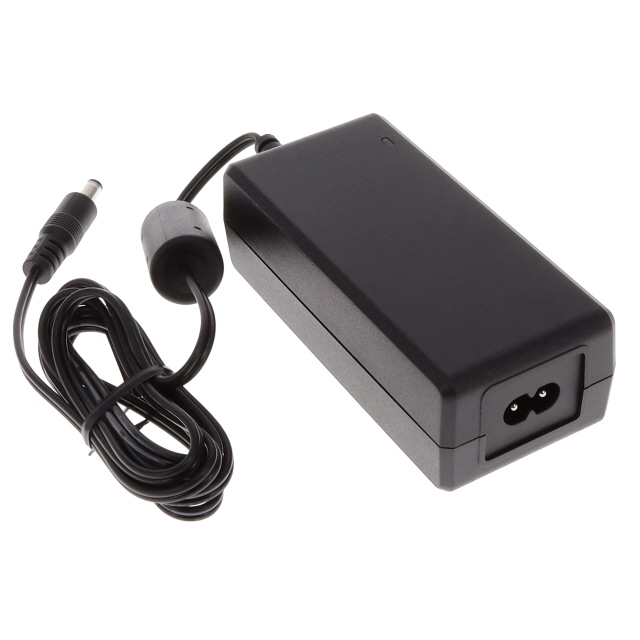

Phihong USA PPL65W-240	65 W	International	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	150 mW	Desktop (Class II)	IEC 320-C8	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.5 m	59 in	62368-1	ITE (Commercial)	264 VAC	90 VAC	24 V	CoC Tier 2 Level VI	cULus IEC	2.71 A	Cord (Sold Separately)	40 °C
Phihong USA PPL65W-480	65 W	International	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	150 mW	Desktop (Class II)	IEC 320-C8	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.5 m	59 in	62368-1	ITE (Commercial)	264 VAC	90 VAC	48 V	CoC Tier 2 Level VI	cULus IEC	1.36 A	Cord (Sold Separately)	40 °C
Phihong USA PPL65W-180	65 W	International	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	150 mW	Desktop (Class II)	IEC 320-C8	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.5 m	59 in	62368-1	ITE (Commercial)	264 VAC	90 VAC	18 V	CoC Tier 2 Level VI	cULus IEC	3.62 A	Cord (Sold Separately)	40 °C
Phihong USA PPL65W-120	60 W	International	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	150 mW	Desktop (Class II)	IEC 320-C8	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	1.5 m	59 in	62368-1	ITE (Commercial)	264 VAC	90 VAC	12 V	CoC Tier 2 Level VI	cULus IEC		Cord (Sold Separately)	40 °C	5 A
