ECA.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 6POS GOLD CRIMP

Part	Insert Material	Shell Finish	Termination	Material Flammability Rating	Shell Size - Insert	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Positions	Color	Contact Material	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Shielding	Mounting Type	Primary Material	Orientation	Contact Finish - Mating	Current Rating (Amps)	Shell Size - Insert [custom]

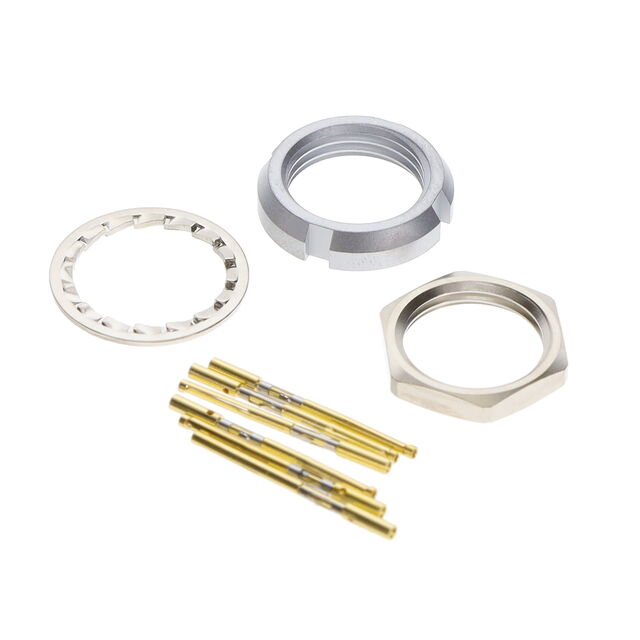

LEMO ECA.1B.306.CYM	Polyetheretherketone (PEEK)	Chrome	Crimp	UL94 V-0	306	Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	6	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount	Metal	A	Gold	7 A
LEMO ECA.1B.302.CLL	Polyetheretherketone (PEEK)	Chrome		UL94 V-0	302	Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	2	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount	Metal	A	Gold	15 A
LEMO ECA.1B.310.CLL	Polyetheretherketone (PEEK)	Chrome		UL94 V-0	310	Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	10	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount	Metal	A	Gold	2.5 A
LEMO ECA.1B.314.CLL	Polyetheretherketone (PEEK)	Chrome		UL94 V-0	314	Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	14	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount	Metal	A	Gold	2 A
LEMO ECA.1B.304.CLL	Polyetheretherketone (PEEK)	Chrome		UL94 V-0	304	Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	4	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount	Metal	A	Gold	10 A
LEMO ECA.1B.307.CLN	Polyetheretherketone (PEEK)	Chrome	Solder	UL94 V-0		Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	7	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount Through Hole	Metal	A	Gold	7 A	307
LEMO ECA.1B.310.CLN	Polyetheretherketone (PEEK)	Chrome	Solder	UL94 V-0	310	Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	10	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount Through Hole	Metal	A	Gold	2.5 A
LEMO ECA.1B.307.CLV	Polyetheretherketone (PEEK)	Chrome	Solder	UL94 V-0		Front and Rear Side Nut	-55 C	250 °C	IP50 - Dust Protected	7	Silver	Bronze	Brass	1.5 Ám	59 Áin	Receptacle Female Sockets	Push-Pull	Shielded	Panel Mount Right Angle Through Hole	Metal	A	Gold	6 A	307
