307-082 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 82POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness [Max]	Card Thickness [Min]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Number of Positions	Gender	Card Type	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Number of Rows [custom]	Mounting Type	Contact Type	Color	Features
EDAC Inc. 307-082-542-212	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.25 Ám	10 Áin	41	82	Female	Non Specified - Dual Edge	Gold	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	2	Through Hole	Semi Bellows	Green
EDAC Inc. 307-082-442-208	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual			41	82	Female	Non Specified - Dual Edge	Tin	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	2	Through Hole	Semi Bellows	Green
EDAC Inc. 307-082-422-278	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual			41	82	Female	Non Specified - Dual Edge	Tin	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	2	Through Hole	Semi Bellows	Green	Card Guides

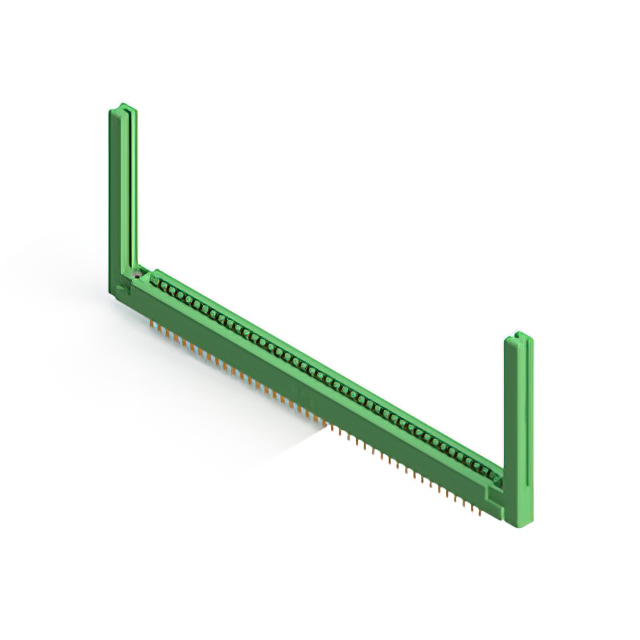

EDAC Inc. 307-082-520-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.25 Ám	10 Áin	41	82	Female	Non Specified - Dual Edge	Gold	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	2	Through Hole	Semi Bellows	Green	Card Guides
EDAC Inc. 307-082-540-208	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.25 Ám	10 Áin	41	82	Female	Non Specified - Dual Edge	Gold	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	2	Through Hole	Semi Bellows	Green

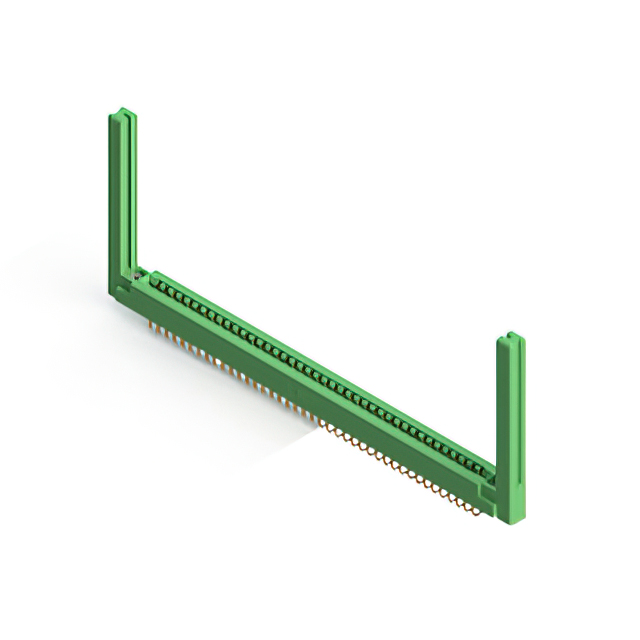

EDAC Inc. 307-082-558-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.25 Ám	10 Áin	41	82	Female	Non Specified - Dual Edge	Gold	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	2	Right Angle Through Hole	Semi Bellows	Green	Card Guides

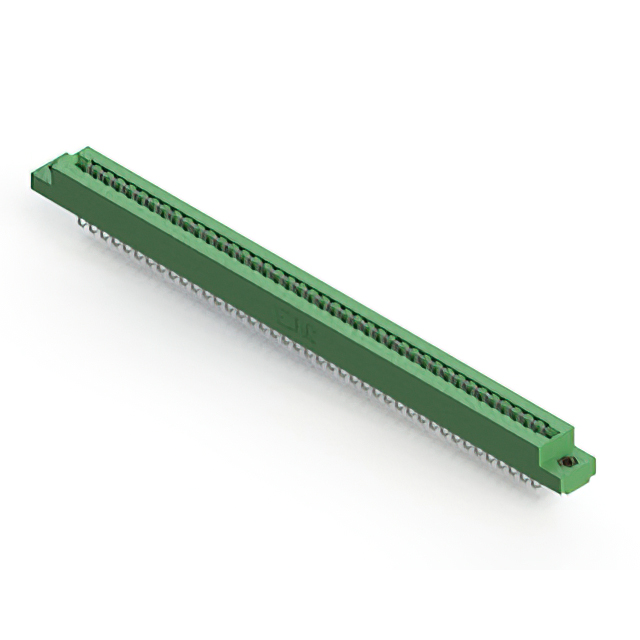

EDAC Inc. 307-082-459-207	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual			41	82	Female	Non Specified - Dual Edge	Tin	Flush Mount M3 Threaded Insert Top Opening			Copper Alloy	2	Right Angle Through Hole	Semi Bellows	Green

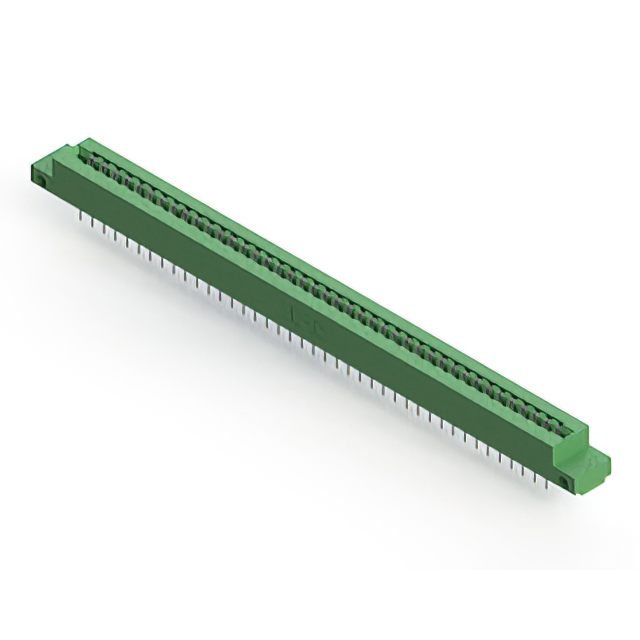

EDAC Inc. 307-082-424-212	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual			41	82	Female	Non Specified - Dual Edge	Tin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	2	Through Hole	Semi Bellows	Green

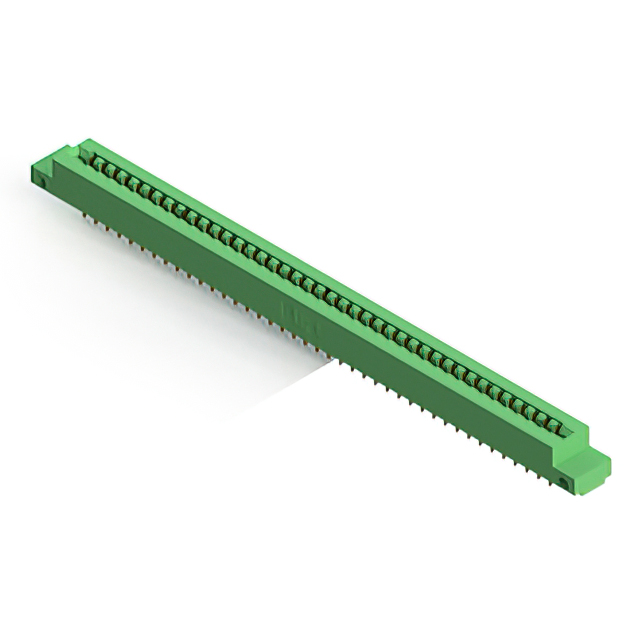

EDAC Inc. 307-082-556-212	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.25 Ám	10 Áin	41	82	Female	Non Specified - Dual Edge	Gold	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	2	Board Edge Straddle Mount	Semi Bellows	Green	Card Extender

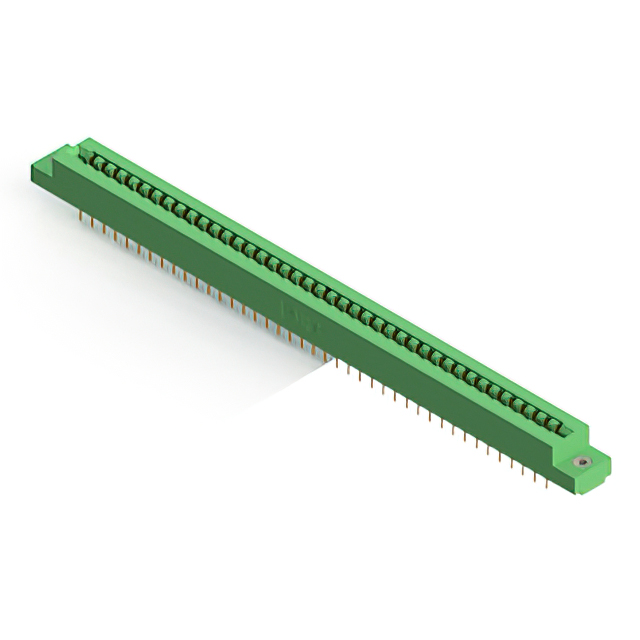

EDAC Inc. 307-082-524-208	2	Polyester Thermoplastic	3.96 mm	0.156 in	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.25 Ám	10 Áin	41	82	Female	Non Specified - Dual Edge	Gold	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	2	Through Hole	Semi Bellows	Green
